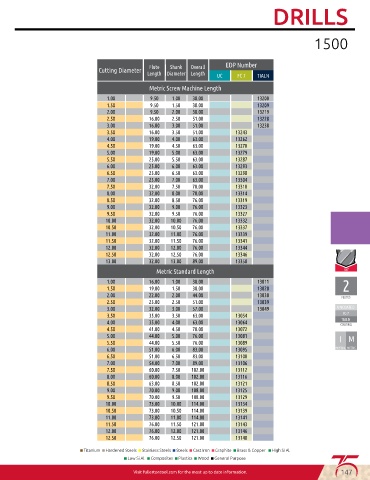

Page 149 - 75th-Online-Anniversary-Catalog

DRILLS

1500

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC FC 7 TIALN
Metric Screw Machine Length

1.00 9.50 1.00 38.00 13200
1.50 9.50 1.50 38.00 13209
2.00 9.50 2.00 38.00 13219
2.50 16.00 2.50 51.00 13228
3.00 16.00 3.00 51.00 13238
3.50 16.00 3.50 51.00 13243
4.00 19.00 4.00 63.00 13262
4.50 19.00 4.50 63.00 13270
5.00 19.00 5.00 63.00 13279
5.50 25.00 5.50 63.00 13287
6.00 25.00 6.00 63.00 13293
6.50 25.00 6.50 63.00 13298
7.00 25.00 7.00 63.00 13304
7.50 32.00 7.50 70.00 13310
8.00 32.00 8.00 70.00 13314
8.50 32.00 8.50 76.00 13319
9.00 32.00 9.00 76.00 13323
9.50 32.00 9.50 76.00 13327
10.00 32.00 10.00 76.00 13332
10.50 32.00 10.50 76.00 13337
11.00 32.00 11.00 76.00 13339
11.50 32.00 11.50 76.00 13341
12.00 32.00 12.00 76.00 13344
12.50 32.00 12.50 76.00 13346
13.00 32.00 13.00 89.00 13358
Metric Standard Length
1.00 16.00 1.00 38.00 13011
1.50 19.00 1.50 38.00 13020
2.00 22.00 2.00 44.00 13030
2.50 25.00 2.50 51.00 13039
3.00 32.00 3.00 57.00 13049 UNCOATED
3.50 35.00 3.50 63.00 13054 FC-7
4.00 35.00 4.00 63.00 13064 TIALN
4.50 41.00 4.50 70.00 13072
5.00 44.00 5.00 76.00 13081 I M
5.50 44.00 5.50 76.00 13089
6.00 51.00 6.00 83.00 13095 IMPERIAL METRIC
6.50 51.00 6.50 83.00 13100
7.00 54.00 7.00 89.00 13106
7.50 60.00 7.50 102.00 13112
8.00 60.00 8.00 102.00 13116
8.50 63.00 8.50 102.00 13121
9.00 70.00 9.00 108.00 13125
9.50 70.00 9.50 108.00 13129
10.00 73.00 10.00 114.00 13134
10.50 73.00 10.50 114.00 13139
11.00 73.00 11.00 114.00 13141
11.50 76.00 11.50 121.00 13143
12.00 76.00 12.00 121.00 13146
12.50 76.00 12.50 121.00 13148
■ Titanium ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Graphite ■ Brass & Copper ■ High Si Al
■ Low Si Al ■ Composites ■ Plastics ■ Wood ■ General Purpose

Visit fullertontool.com for the most up to date information. 147
