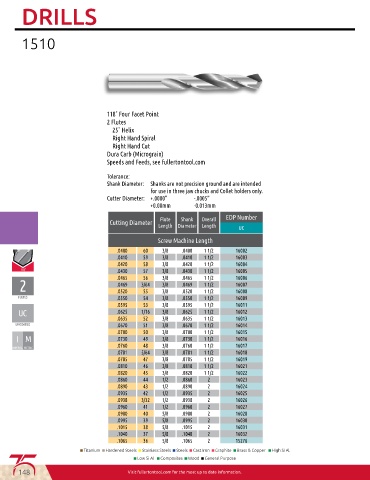

DRILLS

1510

118˚ Four Facet Point
2 Flutes
25˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: Shanks are not precision ground and are intended
for use in three jaw chucks and Collet holders only.
Cutter Diameter: +.0000” -.0005”
+0.00mm -0.013mm
Flute Shank Overall EDP Number
Cutting Diameter
Length Diameter Length UC

Screw Machine Length
.0400 60 3/8 .0400 1 1/2 16002
.0410 59 3/8 .0410 1 1/2 16003
.0420 58 3/8 .0420 1 1/2 16004
.0430 57 3/8 .0430 1 1/2 16005
.0465 56 3/8 .0465 1 1/2 16006
.0469 3/64 3/8 .0469 1 1/2 16007
.0520 55 3/8 .0520 1 1/2 16008
.0550 54 3/8 .0550 1 1/2 16009
.0595 53 3/8 .0595 1 1/2 16011
.0625 1/16 3/8 .0625 1 1/2 16012
.0635 52 3/8 .0635 1 1/2 16013
UNCOATED .0670 51 3/8 .0670 1 1/2 16014
.0700 50 3/8 .0700 1 1/2 16015
I M .0730 49 3/8 .0730 1 1/2 16016
.0760 48 3/8 .0760 1 1/2 16017
IMPERIAL METRIC
.0781 5/64 3/8 .0781 1 1/2 16018
.0785 47 3/8 .0785 1 1/2 16019
.0810 46 3/8 .0810 1 1/2 16021
.0820 45 3/8 .0820 1 1/2 16022
.0860 44 1/2 .0860 2 16023
.0890 43 1/2 .0890 2 16024
.0935 42 1/2 .0935 2 16025
.0938 3/32 1/2 .0938 2 16026
.0960 41 1/2 .0960 2 16027
.0980 40 5/8 .0980 2 16028
.0995 39 5/8 .0995 2 16030
.1015 38 5/8 .1015 2 16031
.1040 37 5/8 .1040 2 16032
.1065 36 5/8 .1065 2 15276
■ Titanium ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Graphite ■ Brass & Copper ■ High Si Al
■ Low Si Al ■ Composites ■ Wood ■ General Purpose
