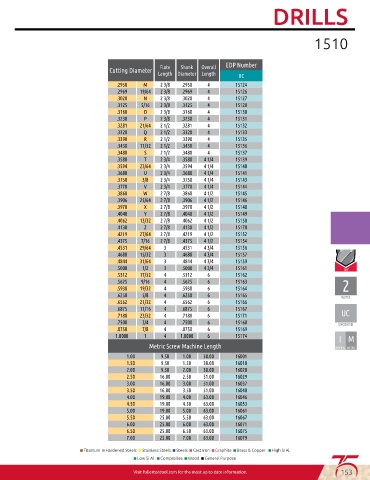

Page 155 - 75th-Online-Anniversary-Catalog

DRILLS

1510

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC
.2950 M 2 3/8 .2950 4 15124
.2969 19/64 2 3/8 .2969 4 15126
.3020 N 2 3/8 .3020 4 15127
.3125 5/16 2 3/8 .3125 4 15128
.3160 O 2 3/8 .3160 4 15130
.3230 P 2 3/8 .3230 4 15131
.3281 21/64 2 1/2 .3281 4 15132
.3320 Q 2 1/2 .3320 4 15133
.3390 R 2 1/2 .3390 4 15135
.3438 11/32 2 1/2 .3438 4 15136
.3480 S 2 1/2 .3480 4 15137
.3580 T 2 3/4 .3580 4 1/4 15139
.3594 23/64 2 3/4 .3594 4 1/4 15140
.3680 U 2 3/4 .3680 4 1/4 15141
.3750 3/8 2 3/4 .3750 4 1/4 15143
.3770 V 2 3/4 .3770 4 1/4 15144
.3860 W 2 7/8 .3860 4 1/2 15145
.3906 25/64 2 7/8 .3906 4 1/2 15146
.3970 X 2 7/8 .3970 4 1/2 15148
.4040 Y 2 7/8 .4040 4 1/2 15149
.4062 13/32 2 7/8 .4062 4 1/2 15150
.4130 Z 2 7/8 .4130 4 1/2 15170
.4219 27/64 2 7/8 .4219 4 1/2 15152
.4375 7/16 2 7/8 .4375 4 1/2 15154
.4531 29/64 3 .4531 4 3/4 15156
.4688 15/32 3 .4688 4 3/4 15157
.4844 31/64 3 .4844 4 3/4 15159
.5000 1/2 3 .5000 4 3/4 15161
.5312 17/32 4 .5312 6 15162
.5625 9/16 4 .5625 6 15163
.5938 19/32 4 .5938 6 15164
.6250 5/8 4 .6250 6 15165
.6562 21/32 4 .6562 6 15166
.6875 11/16 4 .6875 6 15167
.7188 23/32 4 .7188 6 15171
.7500 3/4 4 .7500 6 15168 UNCOATED
.8750 7/8 4 .8750 6 15169
1.0000 1 4 1.0000 6 15174 I M
Metric Screw Machine Length IMPERIAL METRIC

1.00 9.50 1.00 38.00 16001
1.50 9.50 1.50 38.00 16010
2.00 9.50 2.00 38.00 16020
2.50 16.00 2.50 51.00 16029
3.00 16.00 3.00 51.00 16037
3.50 16.00 3.50 51.00 16040
4.00 19.00 4.00 63.00 16046
4.50 19.00 4.50 63.00 16053
5.00 19.00 5.00 63.00 16061
5.50 25.00 5.50 63.00 16067
6.00 25.00 6.00 63.00 16071
6.50 25.00 6.50 63.00 16075
7.00 25.00 7.00 63.00 16079
■ Titanium ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Graphite ■ Brass & Copper ■ High Si Al
■ Low Si Al ■ Composites ■ Wood ■ General Purpose

Visit fullertontool.com for the most up to date information. 153
