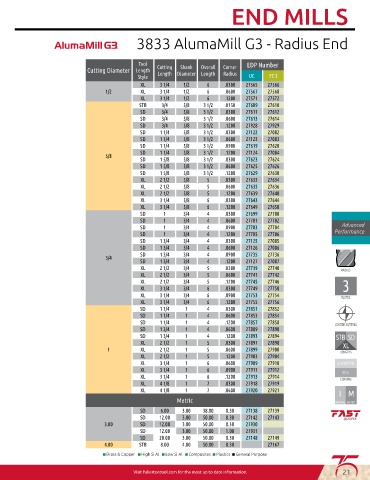

Page 23 - 75th-Online-Anniversary-Catalog

END MILLS

3833 AlumaMill G3 - Radius End

Tool Cutting Shank Overall Corner EDP Number
Cutting Diameter Length Length Diameter Length Radius
Style UC FC 5
XL 3 1/4 1/2 6 .0300 27565 27566
1/2 XL 3 1/4 1/2 6 .0600 27567 27568
XL 3 1/4 1/2 6 .1200 27571 27572
STB 3/4 5/8 3 1/2 .0150 27609 27610
SD 3/4 5/8 3 1/2 .0300 27611 27612
SD 3/4 5/8 3 1/2 .0600 27613 27614
SD 3/4 5/8 3 1/2 .1200 27928 27929
SD 1 1/4 5/8 3 1/2 .0300 27122 27082
SD 1 1/4 5/8 3 1/2 .0600 27123 27083
SD 1 1/4 5/8 3 1/2 .0900 27619 27620
SD 1 1/4 5/8 3 1/2 .1200 27124 27084
5/8
SD 1 5/8 5/8 3 1/2 .0300 27623 27624
SD 1 5/8 5/8 3 1/2 .0600 27625 27626
SD 1 5/8 5/8 3 1/2 .1200 27629 27630
XL 2 1/2 5/8 5 .0300 27633 27634
XL 2 1/2 5/8 5 .0600 27635 27636
XL 2 1/2 5/8 5 .1200 27639 27640
XL 3 1/4 5/8 6 .0300 27643 27644
XL 3 1/4 5/8 6 .1200 27649 27650
SD 1 3/4 4 .0300 27699 27700
SD 1 3/4 4 .0600 27701 27702
SD 1 3/4 4 .0900 27703 27704 Advanced
SD 1 3/4 4 .1200 27705 27706 Performance
SD 1 3/4 3/4 4 .0300 27125 27085
SD 1 3/4 3/4 4 .0600 27126 27086
SD 1 3/4 3/4 4 .0900 27735 27736
3/4
SD 1 3/4 3/4 4 .1200 27127 27087
XL 2 1/2 3/4 5 .0300 27739 27740
XL 2 1/2 3/4 5 .0600 27741 27742
XL 2 1/2 3/4 5 .1200 27745 27746
XL 3 1/4 3/4 6 .0300 27749 27750
XL 3 1/4 3/4 6 .0900 27753 27754
XL 3 1/4 3/4 6 .1200 27755 27756
SD 1 1/4 1 4 .0300 27851 27852
SD 1 1/4 1 4 .0600 27853 27854
SD 1 1/4 1 4 .1200 27857 27858
SD 1 3/4 1 4 .0600 27889 27890
SD 1 3/4 1 4 .1200 27893 27894
XL 2 1/2 1 5 .0300 27897 27898
1 XL 2 1/2 1 5 .0600 27899 27900
XL 2 1/2 1 5 .1200 27903 27904
XL 3 1/4 1 6 .0600 27909 27910 UNCOATED
XL 3 1/4 1 6 .0900 27911 27912 FC-5
XL 3 1/4 1 6 .1200 27913 27914
XL 4 1/8 1 7 .0300 27918 27919
XL 4 1/8 1 7 .0600 27920 27921 I M
Metric IMPERIAL METRIC
SD 6.00 3.00 38.00 0.30 27138 27139
SD 12.00 3.00 50.00 0.30 27142 27143
3.00 SD 12.00 3.00 50.00 0.50 27930
SD 12.00 3.00 50.00 1.00 27931
SD 20.00 3.00 50.00 0.30 27148 27149
4.00 STB 8.00 4.00 50.00 0.30 27167
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ General Purpose

Visit fullertontool.com for the most up to date information. 21
