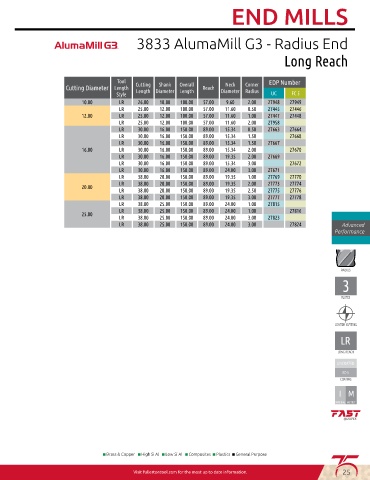

END MILLS

3833 AlumaMill G3 - Radius End

Tool Cutting Shank Overall Neck Corner EDP Number
Cutting Diameter Length Length Diameter Length Reach Diameter Radius
Style UC FC 5
10.00 LR 26.00 10.00 100.00 57.00 9.60 2.00 27948 27949
LR 25.00 12.00 100.00 57.00 11.60 0.50 27445 27446
12.00 LR 25.00 12.00 100.00 57.00 11.60 1.00 27447 27448
LR 25.00 12.00 100.00 57.00 11.60 2.00 27958
LR 30.00 16.00 150.00 89.00 15.34 0.50 27663 27664
LR 30.00 16.00 150.00 89.00 15.34 1.50 27668
LR 30.00 16.00 150.00 89.00 15.34 1.50 27667
16.00 LR 30.00 16.00 150.00 89.00 15.34 2.00 27670
LR 30.00 16.00 150.00 89.00 19.35 2.00 27669
LR 30.00 16.00 150.00 89.00 15.34 3.00 27672
LR 30.00 16.00 150.00 89.00 24.00 3.00 27671
LR 38.00 20.00 150.00 89.00 19.35 1.00 27769 27770
LR 38.00 20.00 150.00 89.00 19.35 2.00 27773 27774
20.00
LR 38.00 20.00 150.00 89.00 19.35 2.50 27775 27776
LR 38.00 20.00 150.00 89.00 19.35 3.00 27777 27778
LR 38.00 25.00 150.00 89.00 24.00 1.00 27815
LR 38.00 25.00 150.00 89.00 24.00 1.00 27816
25.00
LR 38.00 25.00 150.00 89.00 24.00 3.00 27823
LR 38.00 25.00 150.00 89.00 24.00 3.00 27824 Advanced
Performance

UNCOATED
FC-5

I M

IMPERIAL METRIC

■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ General Purpose

Visit fullertontool.com for the most up to date information. 25
