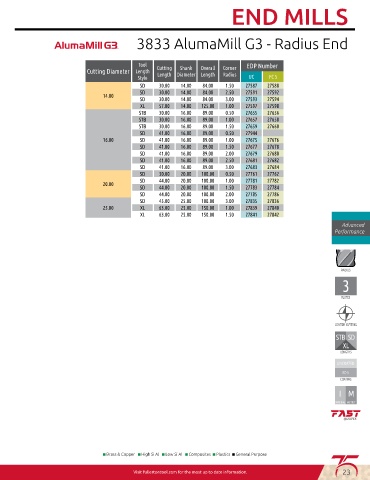

Page 25 - 75th-Online-Anniversary-Catalog

END MILLS

3833 AlumaMill G3 - Radius End

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner
Length Diameter Length
Radius
Style UC FC 5
SD 30.00 14.00 84.00 1.50 27587 27588
SD 30.00 14.00 84.00 2.50 27591 27592
14.00
SD 30.00 14.00 84.00 3.00 27593 27594
XL 57.00 14.00 125.00 1.00 27597 27598
STB 30.00 16.00 89.00 0.50 27655 27656
STB 30.00 16.00 89.00 1.00 27657 27658
STB 30.00 16.00 89.00 1.50 27659 27660
SD 41.00 16.00 89.00 0.50 27944
16.00 SD 41.00 16.00 89.00 1.00 27675 27676
SD 41.00 16.00 89.00 1.50 27677 27678
SD 41.00 16.00 89.00 2.00 27679 27680
SD 41.00 16.00 89.00 2.50 27681 27682
SD 41.00 16.00 89.00 3.00 27683 27684
SD 30.00 20.00 100.00 0.50 27761 27762
SD 44.00 20.00 100.00 1.00 27781 27782
20.00
SD 44.00 20.00 100.00 1.50 27783 27784
SD 44.00 20.00 100.00 2.00 27785 27786
SD 45.00 25.00 100.00 3.00 27835 27836
25.00 XL 63.00 25.00 150.00 1.00 27839 27840
XL 63.00 25.00 150.00 1.50 27841 27842

UNCOATED
FC-5

I M

IMPERIAL METRIC

■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ General Purpose
