END MILLS

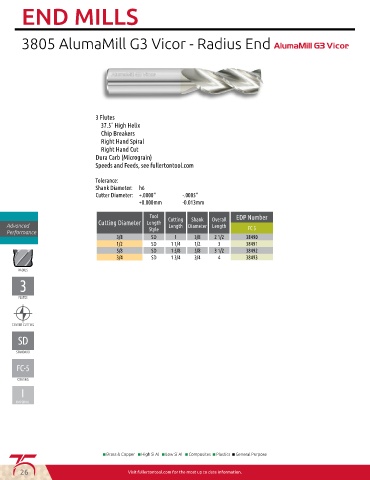

3805 AlumaMill G3 Vicor - Radius End

3 Flutes
37.5˚ High Helix
Chip Breakers
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.0005”
+0.000mm -0.013mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall
Advanced Length Diameter Length FC 5
Performance Style
3/8 SD 1 3/8 2 1/2 38490
1/2 SD 1 1/4 1/2 3 38491
5/8 SD 1 5/8 5/8 3 1/2 38492
3/4 SD 1 3/4 3/4 4 38493

I
IMPERIAL

■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ General Purpose
