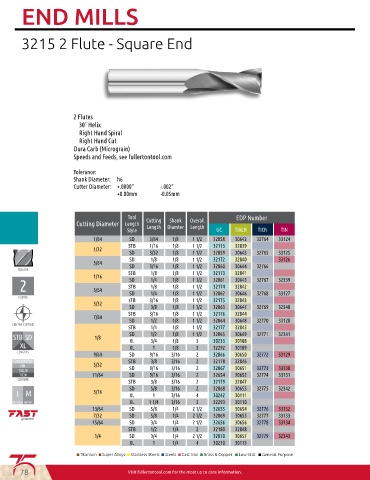

Page 80 - 75th-Online-Anniversary-Catalog

END MILLS

3215 2 Flute - Square End

2 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diamter Length
Style UC TIALN TICN TIN
1/64 SD 3/64 1/8 1 1/2 32058 30642 32764 33124
STB 1/16 1/8 1 1/2 32113 32839
1/32
SD 3/32 1/8 1 1/2 32059 30643 32765 33125
SD 1/8 1/8 1 1/2 32172 32840 33126
3/64
SD 3/16 1/8 1 1/2 32060 30644 32766
STB 1/8 1/8 1 1/2 32173 32841
1/16
SD 1/4 1/8 1 1/2 32061 30645 32767 32339
STB 1/8 1/8 1 1/2 32174 32842
5/64
SD 1/4 1/8 1 1/2 32062 30646 32768 33127
sTB 3/16 1/8 1 1/2 32175 32843
3/32
SD 3/8 1/8 1 1/2 32063 30647 32769 32340
STB 3/16 1/8 1 1/2 32176 32844
7/64
SD 1/2 1/8 1 1/2 32064 30648 32770 33128
STB 1/4 1/8 1 1/2 32177 32845
SD 1/2 1/8 1 1/2 32065 30649 32771 32341
1/8
XL 3/4 1/8 3 30233 30108
XL 1 1/8 3 32292 30109
9/64 SD 9/16 3/16 2 32066 30650 32772 33129
UNCOATED STB 3/8 3/16 2 32178 32846
TIN 5/32 SD 9/16 3/16 2 32067 30651 32773 33130
TIALN
TICN 11/64 SD 9/16 3/16 2 32654 30652 32774 33131
STB 3/8 3/16 2 32179 32847
SD 5/8 3/16 2 32068 30653 32775 32342
I M 3/16 XL 1 3/16 4 30242 30111

IMPERIAL METRIC XL 1 1/4 3/16 3 32293 30110
13/64 SD 5/8 1/4 2 1/2 32655 30654 32776 33132
7/32 SD 5/8 1/4 2 1/2 32069 30655 32777 33133
15/64 SD 3/4 1/4 2 1/2 32656 30656 32778 33134
STB 1/2 1/4 2 32180 32848
1/4 SD 3/4 1/4 2 1/2 32070 30657 32779 32343
XL 1 1/4 4 30210 30113
■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose

78 Visit fullertontool.com for the most up to date information.
