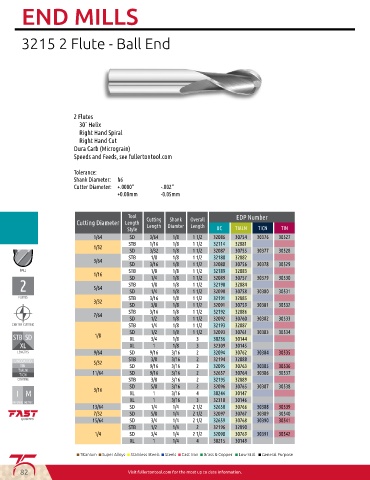

Page 84 - 75th-Online-Anniversary-Catalog

END MILLS

3215 2 Flute - Ball End

2 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Shank
Cutting Diameter Length Cutting Diamter Overall
Length
Length
Style UC TIALN TICN TIN
1/64 SD 3/64 1/8 1 1/2 32086 30754 30376 30527
STB 1/16 1/8 1 1/2 32114 32881
1/32
SD 3/32 1/8 1 1/2 32087 30755 30377 30528
STB 1/8 1/8 1 1/2 32188 32882
3/64
SD 3/16 1/8 1 1/2 32088 30756 30378 30529
STB 1/8 1/8 1 1/2 32189 32883
1/16
SD 1/4 1/8 1 1/2 32089 30757 30379 30530
STB 1/8 1/8 1 1/2 32190 32884
5/64
SD 1/4 1/8 1 1/2 32090 30758 30380 30531
STB 3/16 1/8 1 1/2 32191 32885
3/32
SD 3/8 1/8 1 1/2 32091 30759 30381 30532
STB 3/16 1/8 1 1/2 32192 32886
7/64
SD 1/2 1/8 1 1/2 32092 30760 30382 30533
STB 1/4 1/8 1 1/2 32193 32887
SD 1/2 1/8 1 1/2 32093 30761 30383 30534
1/8
XL 3/4 1/8 3 30236 30144
XL 1 1/8 3 32309 30145
9/64 SD 9/16 3/16 2 32094 30762 30384 30535
UNCOATED 5/32 STB 3/8 3/16 2 32194 32888
TIN SD 9/16 3/16 2 32095 30763 30385 30536
TIALN 11/64 SD 9/16 3/16 2 32657 30764 30386 30537
TICN
STB 3/8 3/16 2 32195 32889
SD 5/8 3/16 2 32096 30765 30387 30538
I M 3/16 XL 1 3/16 4 30244 30147
XL 1 3/16 3 32310 30146
IMPERIAL METRIC
13/64 SD 1/4 1/4 2 1/2 32658 30766 30388 30539
7/32 SD 5/8 1/4 2 1/2 32097 30767 30389 30540
15/64 SD 3/4 1/4 2 1/2 32659 30768 30390 30541
STB 1/2 1/4 2 32196 32890
1/4 SD 3/4 1/4 2 1/2 32098 30769 30391 30542
XL 1 1/4 4 30215 30149

■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose

82
