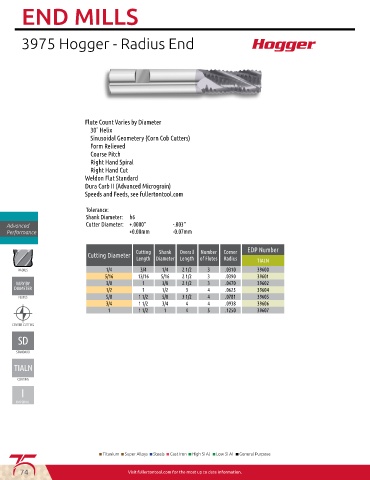

Page 76 - 75th-Online-Anniversary-Catalog

END MILLS

3975 Hogger - Radius End

Flute Count Varies by Diameter
30˚ Helix
Sinusoidal Geometery (Corn Cob Cutters)
Form Relieved
Coarse Pitch
Right Hand Spiral
Right Hand Cut
Weldon Flat Standard
Dura Carb II (Advanced Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Advanced Cutter Diameter: +.0000” -.003”
Performance +0.00mm -0.07mm

Cutting Diameter Cutting Shank Overall Number Corner EDP Number
Length Diameter Length of Flutes Radius TIALN
1/4 3/4 1/4 2 1/2 3 .0310 39600
5/16 13/16 5/16 2 1/2 3 .0390 39601
3/8 1 3/8 2 1/2 3 .0470 39602
1/2 1 1/2 3 4 .0625 39604
5/8 1 1/2 5/8 3 1/2 4 .0781 39605
3/4 1 1/2 3/4 4 4 .0938 39606
1 1 1/2 1 4 5 .1250 39607

I
IMPERIAL

■ Titanium ■ Super Alloys ■ Steels ■ Cast Iron ■ High Si Al ■ Low Si Al ■ General Purpose
