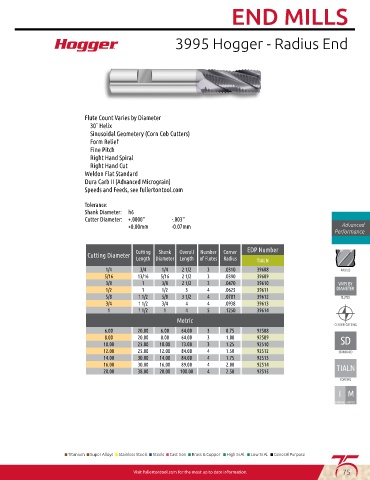

Page 77 - 75th-Online-Anniversary-Catalog

END MILLS

3995 Hogger - Radius End

Flute Count Varies by Diameter
30˚ Helix
Sinusoidal Geometery (Corn Cob Cutters)
Form Relief
Fine Pitch
Right Hand Spiral
Right Hand Cut
Weldon Flat Standard
Dura Carb II (Advanced Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.003”
+0.00mm -0.07mm Advanced
Performance

Cutting Diameter Cutting Shank Overall Number Corner EDP Number
Length Diameter Length of Flutes Radius TIALN
1/4 3/4 1/4 2 1/2 3 .0310 39608
5/16 13/16 5/16 2 1/2 3 .0390 39609
3/8 1 3/8 2 1/2 3 .0470 39610
1/2 1 1/2 3 4 .0625 39611
5/8 1 1/2 5/8 3 1/2 4 .0781 39612
3/4 1 1/2 3/4 4 4 .0938 39613
1 1 1/2 1 4 5 .1250 39614
Metric

6.00 20.00 6.00 64.00 3 0.75 92508
8.00 20.00 8.00 64.00 3 1.00 92509
10.00 25.00 10.00 73.00 3 1.25 92510
12.00 25.00 12.00 84.00 4 1.50 92512
14.00 30.00 14.00 84.00 4 1.75 92513
16.00 30.00 16.00 89.00 4 2.00 92514
20.00 38.00 20.00 100.00 4 2.50 92515

I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ High Si Al ■ Low Si Al ■ General Purpose
