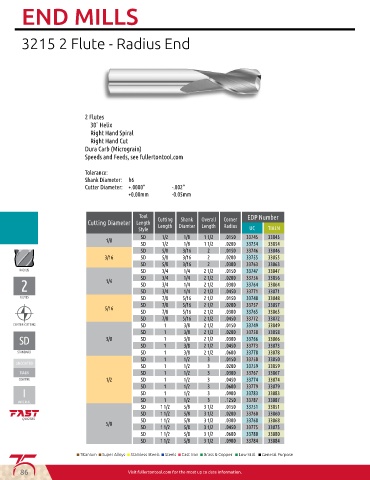

END MILLS

3215 2 Flute - Radius End

2 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Shank
Cutting Diameter Length Cutting Diamter Overall Corner
Radius
Length
Length
Style UC TIALN
SD 1/2 1/8 1 1/2 .0150 33745 33845
1/8
SD 1/2 1/8 1 1/2 .0200 33754 33854
SD 5/8 3/16 2 .0150 33746 33846
3/16 SD 5/8 3/16 2 .0200 33755 33855
SD 5/8 3/16 2 .0300 33763 33863
SD 3/4 1/4 2 1/2 .0150 33747 33847
SD 3/4 1/4 2 1/2 .0200 33756 33856
1/4
SD 3/4 1/4 2 1/2 .0300 33764 33864
SD 3/4 1/4 2 1/2 .0450 33771 33871
SD 7/8 5/16 2 1/2 .0150 33748 33848
SD 7/8 5/16 2 1/2 .0200 33757 33857
5/16
SD 7/8 5/16 2 1/2 .0300 33765 33865
SD 7/8 5/16 2 1/2 .0450 33772 33872
SD 1 3/8 2 1/2 .0150 33749 33849
SD 1 3/8 2 1/2 .0200 33758 33858
3/8 SD 1 3/8 2 1/2 .0300 33766 33866
SD 1 3/8 2 1/2 .0450 33773 33873
SD 1 3/8 2 1/2 .0600 33778 33878
SD 1 1/2 3 .0150 33750 33850
UNCOATED
SD 1 1/2 3 .0200 33759 33859
TIALN SD 1 1/2 3 .0300 33767 33867
1/2 SD 1 1/2 3 .0450 33774 33874
SD 1 1/2 3 .0600 33779 33879
I SD 1 1/2 3 .0900 33783 33883
IMPERIAL SD 1 1/2 3 .1250 33787 33887
SD 1 1/2 5/8 3 1/2 .0150 33751 33851
SD 1 1/2 5/8 3 1/2 .0200 33760 33860
SD 1 1/2 5/8 3 1/2 .0300 33768 33868
5/8
SD 1 1/2 5/8 3 1/2 .0450 33775 33875
SD 1 1/2 5/8 3 1/2 .0600 33780 33880
SD 1 1/2 5/8 3 1/2 .0900 33784 33884

■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
