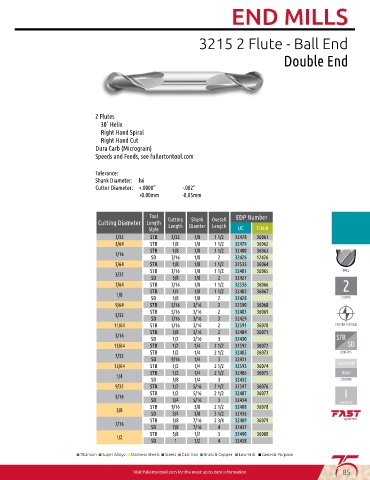

Page 87 - 75th-Online-Anniversary-Catalog

END MILLS

3215 2 Flute - Ball End

Double End

2 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Shank
Cutting Diameter Length Cutting Diamter Overall
Length
Length
Style UC TIALN
1/32 STB 3/32 1/8 1 1/2 32478 36061
3/64 STB 1/8 1/8 1 1/2 32479 36062
STB 1/8 1/8 1 1/2 32480 36063
1/16
SD 3/16 1/8 2 32426 12426
5/64 STB 1/8 1/8 1 1/2 32535 36064
STB 3/16 1/8 1 1/2 32481 36065
3/32
SD 3/8 1/8 2 32427
7/64 STB 3/16 1/8 1 1/2 32536 36066
STB 1/4 1/8 1 1/2 32482 36067
1/8
SD 3/8 1/8 2 32428
9/64 STB 5/16 3/16 2 32590 36068
STB 5/16 3/16 2 32483 36069
5/32
SD 7/16 3/16 3 32429
11/64 STB 5/16 3/16 2 32591 36070
STB 3/8 3/16 2 32484 36071
3/16
SD 1/2 3/16 3 32430
13/64 STB 1/2 1/4 2 1/2 32592 36072
STB 1/2 1/4 2 1/2 32485 36073
7/32
SD 9/16 1/4 3 32431
15/64 STB 1/2 1/4 2 1/2 32593 36074 UNCOATED
STB 1/2 1/4 2 1/2 32486 36075 TIALN
1/4
SD 5/8 1/4 3 32432
9/32 STB 1/2 5/16 2 1/2 32597 36076
STB 1/2 5/16 2 1/2 32487 36077 I
5/16
SD 3/4 5/16 3 32434 IMPERIAL
STB 9/16 3/8 2 1/2 32488 36078
3/8
SD 3/4 3/8 3 1/2 32436
STB 5/8 7/16 2 3/4 32489 36079
7/16
SD 7/8 7/16 4 32437
STB 5/8 1/2 3 32490 36080
1/2
SD 1 1/2 4 32438
■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose

Visit fullertontool.com for the most up to date information. 85
