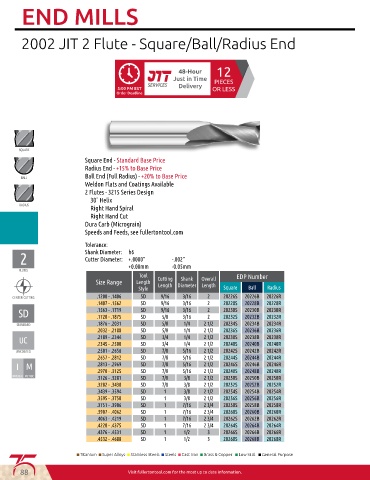

END MILLS

2002 JIT 2 Flute - Square/Ball/Radius End

48-Hour 12
Just in Time PIECES
Delivery
5:00 PM EST OR LESS
Order Deadline

Square End - Standard Base Price
Radius End - +15% to Base Price
Ball End (Full Radius) - +20% to Base Price
Weldon Flats and Coatings Available
2 Flutes - 3215 Series Design
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm
Tool Cutting Shank Overall EDP Number
Size Range Length Length Diameter Length
Style Square Ball Radius
.1200 - .1406 SD 9/16 3/16 2 20226S 20226B 20226R
.1407 - .1562 SD 9/16 3/16 2 20228S 20228B 20228R
.1563 - .1719 SD 9/16 3/16 2 20230S 20230B 20230R
.1720 - .1875 SD 5/8 3/16 2 20232S 20232B 20232R
.1876 - .2031 SD 5/8 1/4 2 1/2 20234S 20234B 20234R
.2032 - .2188 SD 5/8 1/4 2 1/2 20236S 20236B 20236R
.2189 - .2344 SD 3/4 1/4 2 1/2 20238S 20238B 20238R
.2345 - .2500 SD 3/4 1/4 2 1/2 20240S 20240B 20240R
UNCOATED .2501 - .2656 SD 7/8 5/16 2 1/2 20242S 20242B 20242R
.2657 - .2812 SD 7/8 5/16 2 1/2 20244S 20244B 20244R
I M .2813 - .2969 SD 7/8 5/16 2 1/2 20246S 20246B 20246R
SD
20248S
20248R
7/8
5/16
20248B
2 1/2
.2970 - .3125
IMPERIAL METRIC .3126 - .3281 SD 7/8 3/8 2 1/2 20250S 20250B 20250R
.3282 - .3438 SD 7/8 3/8 2 1/2 20252S 20252B 20252R
.3439 - .3594 SD 1 3/8 2 1/2 20254S 20254B 20254R
.3595 - .3750 SD 1 3/8 2 1/2 20256S 20256B 20256R
.3751 - .3906 SD 1 7/16 2 3/4 20258S 20258B 20258R
.3907 - .4062 SD 1 7/16 2 3/4 20260S 20260B 20260R
.4063 - .4219 SD 1 7/16 2 3/4 20262S 20262B 20262R
.4220 - .4375 SD 1 7/16 2 3/4 20264S 20264B 20264R
.4376 - .4531 SD 1 1/2 3 20266S 20266B 20266R
.4532 - .4688 SD 1 1/2 3 20268S 20268B 20268R
■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
