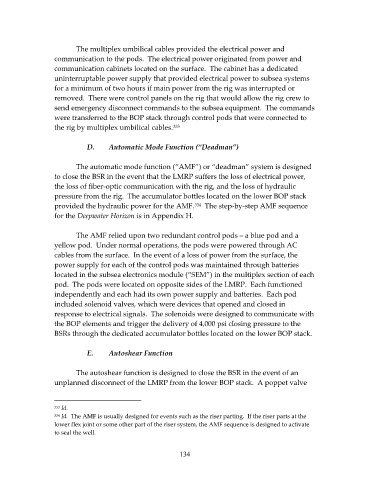

The multiplex umbilical cables provided the electrical power and
                   communication to the pods.  The electrical power originated from power and
                   communication cabinets located on the surface.  The cabinet has a dedicated
                   uninterruptable power supply that provided electrical power to subsea systems
                   for a minimum of two hours if main power from the rig was interrupted or
                   removed.  There were control panels on the rig that would allow the rig crew to
                   send emergency disconnect commands to the subsea equipment.  The commands
                   were transferred to the BOP stack through control pods that were connected to
                   the rig by multiplex umbilical cables.
                                                          333

                              D.     Automatic Mode Function (“Deadman”)

                          The automatic mode function (“AMF”) or “deadman” system is designed
                   to close the BSR in the event that the LMRP suffers the loss of electrical power,
                   the loss of fiber‐optic communication with the rig, and the loss of hydraulic
                   pressure from the rig.  The accumulator bottles located on the lower BOP stack
                                                                 334
                   provided the hydraulic power for the AMF.   The step‐by‐step AMF sequence
                   for the Deepwater Horizon is in Appendix H.

                          The AMF relied upon two redundant control pods – a blue pod and a
                   yellow pod.  Under normal operations, the pods were powered through AC
                   cables from the surface.  In the event of a loss of power from the surface, the
                   power supply for each of the control pods was maintained through batteries
                   located in the subsea electronics module (“SEM”) in the multiplex section of each
                   pod.  The pods were located on opposite sides of the LMRP.  Each functioned
                   independently and each had its own power supply and batteries.  Each pod
                   included solenoid valves, which were devices that opened and closed in
                   response to electrical signals.  The solenoids were designed to communicate with
                   the BOP elements and trigger the delivery of 4,000 psi closing pressure to the
                   BSRs through the dedicated accumulator bottles located on the lower BOP stack.

                              E.     Autoshear Function

                          The autoshear function is designed to close the BSR in the event of an
                   unplanned disconnect of the LMRP from the lower BOP stack.  A poppet valve



                   333  Id.
                   334  Id.  The AMF is usually designed for events such as the riser parting.  If the riser parts at the
                   lower flex joint or some other part of the riser system, the AMF sequence is designed to activate
                   to seal the well.
