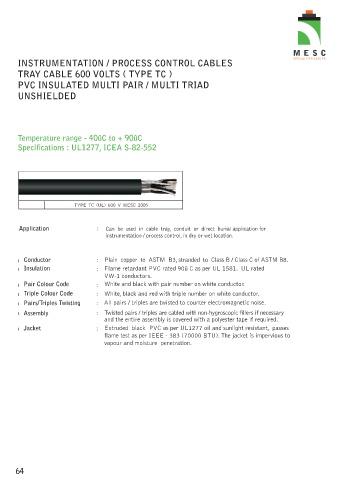

INSTRUMENTATION / PROCESS CONTROL CABLES
TRAY CABLE 600 VOLTS ( TYPE TC )
PVC INSULATED MULTI PAIR / MULTI TRIAD
UNSHIELDED
Temperature range - 40ûC to + 90ûC
Specifications : UL1277, ICEA S-82-552
TYPE TC (UL) 600 V MESC 2005
Application : Can be used in cable tray, conduit or direct burial application for
instrumentation / process control, in dry or wet location.
l Conductor : Plain copper to ASTM B3, stranded to Class B / Class C of ASTM B8.
l Insulation : Flame retardant PVC rated 90û C as per UL 1581. UL rated
VW-1 conductors.
l Pair Colour Code : White and black with pair number on white conductor.
l Triple Colour Code : White, black and red with triple number on white conductor.
l Pairs/Triples Twisting : All pairs / triples are twisted to counter electromagnetic noise.
l Assembly : Twisted pairs / triples are cabled with non-hygroscopic fillers if necessary
and the entire assembly is covered with a polyester tape if required.
l Jacket : Extruded black PVC as per UL1277 oil and sunlight resistant, passes
flame test as per IEEE - 383 (70000 BTU). The jacket is impervious to
vapour and moisture penetration.
