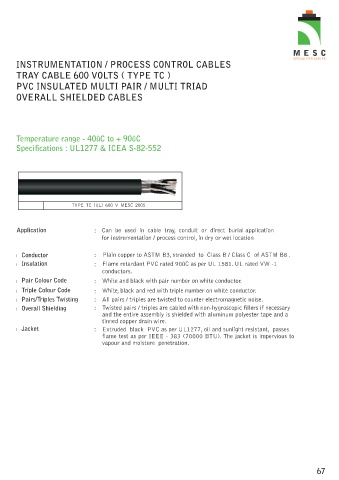

INSTRUMENTATION / PROCESS CONTROL CABLES
TRAY CABLE 600 VOLTS ( TYPE TC )
PVC INSULATED MULTI PAIR / MULTI TRIAD
OVERALL SHIELDED CABLES
Temperature range - 40ûC to + 90ûC
Specifications : UL1277 & ICEA S-82-552
TYPE TC (UL) 600 V MESC 2005
Application : Can be used in cable tray, conduit or direct burial application
for instrumentation / process control, in dry or wet location
l Conductor : Plain copper to ASTM B3, stranded to Class B / Class C of ASTM B8 .
l Insulation : Flame retardant PVC rated 90ûC as per UL 1581. UL rated VW -1
conductors.
l Pair Colour Code : White and black with pair number on white conductor.
l Triple Colour Code : White, black and red with triple number on white conductor.
l Pairs/Triples Twisting : All pairs / triples are twisted to counter electromagnetic noise.
l Overall Shielding : Twisted pairs / triples are cabled with non-hygroscopic fillers if necessary
and the entire assembly is shielded with aluminum polyester tape and a
tinned copper drain wire.
l Jacket : Extruded black PVC as per UL1277, oil and sunlight resistant, passes
flame test as per IEEE - 383 (70000 BTU). The jacket is impervious to
vapour and moisture penetration.
