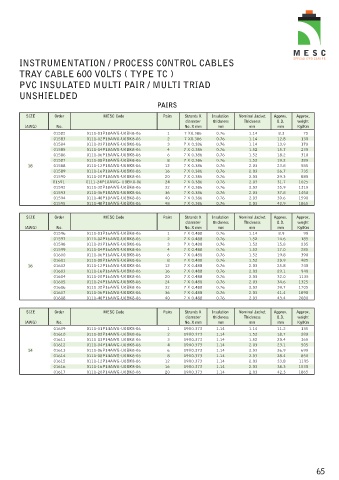

INSTRUMENTATION / PROCESS CONTROL CABLES
TRAY CABLE 600 VOLTS ( TYPE TC )

PVC INSULATED MULTI PAIR / MULTI TRIAD
UNSHIELDED
PAIRS

SIZE Order MESC Code Pairs Strands X Insulation Nominal Jacket Approx. Approx.
diameter thickness Thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01582 0111-01P18AWG-U0BK8-06 1 7 X0.386 0.76 1.14 8.3 75
01583 0111-02P18AWG-U0BK8-06 2 7 X0.386 0.76 1.14 12.8 130
01584 0111-03P18AWG-U0BK8-06 3 7 X 0.386 0.76 1.14 13.9 170
01585 0111-04P18AWG-U0BK8-06 4 7 X 0.386 0.76 1.52 15.7 230
01586 0111-06P18AWG-U0BK8-06 6 7 X 0.386 0.76 1.52 18.2 310
01587 0111-08P18AWG-U0BK8-06 8 7 X 0.386 0.76 1.52 19.2 380
18 01588 0111-12P18AWG-U0BK8-06 12 7 X 0.386 0.76 2.03 23.8 585
01589 0111-16P18AWG-U0BK8-06 16 7 X 0.386 0.76 2.03 26.7 735
01590 0111-20P18AWG-U0BK8-06 20 7 X 0.386 0.76 2.03 29.3 880
01591 0111-24P18AWG- U0BK8-06 24 7 X 0.386 0.76 2.03 31.7 1025
01592 0111-32P18AWG-U0BK8-06 32 7 X 0.386 0.76 2.03 35.9 1310
01593 0111-36P18AWG-U0BK8-06 36 7 X 0.386 0.76 2.03 37.8 1450
01594 0111-40P18AWG-U0BK8-06 40 7 X 0.386 0.76 2.03 39.6 1590
01595 0111-48P18AWG-U0BK8-06 48 7 X 0.386 0.76 2.03 42.9 1865

SIZE Order MESC Code Pairs Strands X Insulation Nominal Jacket Approx. Approx.
diameter thickness Thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01596 0111-01P16AWG-U0BK8-06 1 7 X 0.488 0.76 1.14 8.9 90
01597 0111-02P16AWG-U0BK8-06 2 7 X 0.488 0.76 1.52 14.6 185
01598 0111-03P16AWG-U0BK8-06 3 7 X 0.488 0.76 1.52 15.8 235
01599 0111-04P16AWG-U0BK8-06 4 7 X 0.488 0.76 1.52 17.0 285
01600 0111-06P16AWG-U0BK8-06 6 7 X 0.488 0.76 1.52 19.8 390
01601 0111-08P16AWG-U0BK8-06 8 7 X 0.488 0.76 1.52 20.9 485
16 01602 0111-12P16AWG-U0BK8-06 12 7 X 0.488 0.76 2.03 25.8 740
01603 0111-16P16AWG-U0BK8-06 16 7 X 0.488 0.76 2.03 29.1 940
01604 0111-20P16AWG-U0BK8-06 20 7 X 0.488 0.76 2.03 32.0 1135
01605 0111-24P16AWG-U0BK8-06 24 7 X 0.488 0.76 2.03 34.6 1325
01606 0111-32P16AWG-U0BK8-06 32 7 X 0.488 0.76 2.03 39.7 1705
01607 0111-36P16AWG-U0BK8-06 36 7 X 0.488 0.76 2.03 41.4 1890
01608 0111-40P16AWG-U0BK8-06 40 7 X 0.488 0.76 2.03 43.4 2080

SIZE Order MESC Code Pairs Strands X Insulation Nominal Jacket Approx. Approx.
diameter thickness Thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01609 0111-01P14AWG-U0BK8-06 1 19X0.373 1.14 1.14 11.2 135
01610 0111-02P14AWG-U0BK8-06 2 19X0.373 1.14 1.52 18.7 280
01611 0111-03P14AWG-U0BK8-06 3 19X0.373 1.14 1.52 20.4 365
01612 0111-04P14AWG-U0BK8-06 4 19X0.373 1.14 2.03 23.1 505
14 01613 0111-06P14AWG-U0BK8-06 6 19X0.373 1.14 2.03 26.9 690
01614 0111-08P14AWG-U0BK8-06 8 19X0.373 1.14 2.03 28.4 850
01615 0111-12P14AWG-U0BK8-06 12 19X0.373 1.14 2.03 33.8 1195
01616 0111-16P14AWG-U0BK8-06 16 19X0.373 1.14 2.03 38.3 1530
01617 0111-20P14AWG-U0BK8-06 20 19X0.373 1.14 2.03 42.3 1865
