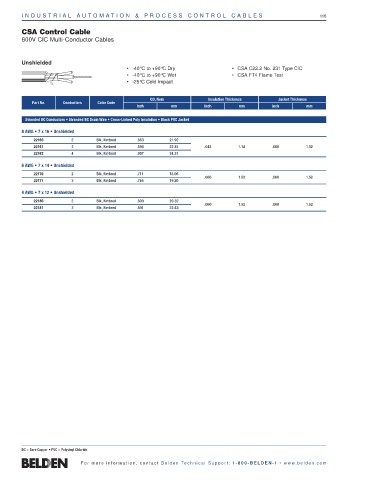

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 116

CSA Control Cable
600V CIC Multi-Conductor Cables

Unshielded
• -40°C to +90°C Dry • CSA C22.2 No. 231 Type CIC
• -40°C to +90°C Wet • CSA FT4 Flame Test
• -25°C Cold Impact

OD, Nom Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
Stranded BC Conductors • Stranded BC Drain Wire • Cross-Linked Poly Insulation • Black PVC Jacket

8 AWG • 7 x 16 • Unshielded
22160 2 Blk, Nmbred .863 21.92
22161 3 Blk, Nmbred .898 22.81 .045 1.14 .060 1.52
22162 4 Blk, Nmbred .957 24.31

6 AWG • 7 x 14 • Unshielded
22170 2 Blk, Nmbred .711 18.06
.060 1.52 .060 1.52
22171 3 Blk, Nmbred .756 19.20
4 AWG • 7 x 12 • Unshielded
22180 2 Blk, Nmbred .800 20.32
.060 1.52 .060 1.52
22181 3 Blk, Nmbred .891 22.63

BC = Bare Copper • PVC = Polyvinyl Chloride
