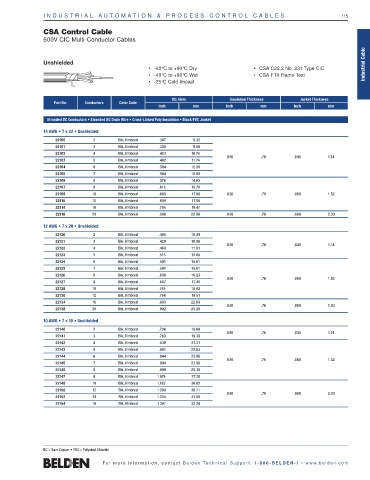

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 115

CSA Control Cable
600V CIC Multi-Conductor Cables
Industrial Cable
Unshielded
• -40°C to +90°C Dry • CSA C22.2 No. 231 Type CIC
• -40°C to +90°C Wet • CSA FT4 Flame Test
• -25°C Cold Impact

OD, Nom Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
Stranded BC Conductors • Stranded BC Drain Wire • Cross-Linked Poly Insulation • Black PVC Jacket

14 AWG • 7 x 22 • Unshielded
22100 2 Blk, Nmbred .367 9.32
22101 3 Blk, Nmbred .388 9.86
22102 4 Blk, Nmbred .423 10.74
.030 .76 .045 1.14
22103 5 Blk, Nmbred .462 11.74
22104 6 Blk, Nmbred .504 12.80
22105 7 Blk, Nmbred .504 12.80
22106 8 Blk, Nmbred .576 14.63
22107 9 Blk, Nmbred .618 15.70
22108 10 Blk, Nmbred .669 17.00 .030 .76 .060 1.52
22110 12 Blk, Nmbred .689 17.50
22114 16 Blk, Nmbred .764 19.41
22118 20 Blk, Nmbred .886 22.50 .030 .76 .080 2.03
12 AWG • 7 x 20 • Unshielded
22120 2 Blk, Nmbred .405 10.29
22121 3 Blk, Nmbred .429 10.90
.030 .76 .045 1.14
22122 4 Blk, Nmbred .469 11.91
22123 5 Blk, Nmbred .515 13.08
22124 6 Blk, Nmbred .591 15.01
22125 7 Blk, Nmbred .591 15.01
22126 8 Blk, Nmbred .639 16.23
.030 .76 .060 1.52
22127 9 Blk, Nmbred .687 17.45
22128 10 Blk, Nmbred .745 18.92
22130 12 Blk, Nmbred .768 19.51
22134 16 Blk, Nmbred .893 22.68
.030 .76 .080 2.03
22138 20 Blk, Nmbred .992 25.20
10 AWG • 7 x 18 • Unshielded
22140 2 Blk, Nmbred .736 18.69
.030 .76 .045 1.14
22141 3 Blk, Nmbred .763 19.38
22142 4 Blk, Nmbred .839 21.31
22143 5 Blk, Nmbred .891 22.63
22144 6 Blk, Nmbred .944 23.98
.030 .76 .060 1.52
22145 7 Blk, Nmbred .944 23.98
22146 8 Blk, Nmbred .999 25.38
22147 9 Blk, Nmbred 1.074 27.28
22148 10 Blk, Nmbred 1.182 30.02
22150 12 Blk, Nmbred 1.209 30.71
.030 .76 .080 2.03
22152 14 Blk, Nmbred 1.255 31.88
22154 16 Blk, Nmbred 1.307 33.20

BC = Bare Copper • PVC = Polyvinyl Chloride
