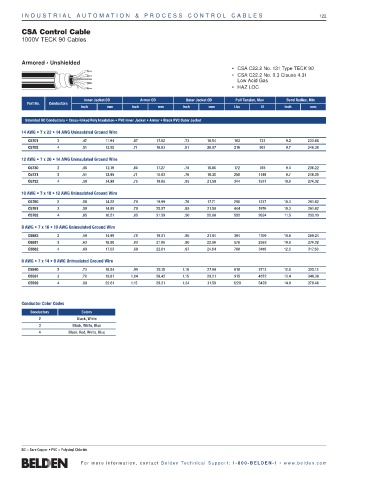

Page 122 - belden

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 122

CSA Control Cable
1000V TECK 90 Cables

Armored • Unshielded
• CSA C22.2 No. 131 Type TECK 90
• CSA C22.2 No. 0.3 Clause 4.31
Low Acid Gas
• HAZ LOC
Inner Jacket OD Armor OD Outer Jacket OD Pull Tension, Max Bend Radius, Min
Part No. Conductors
Inch mm Inch mm Inch mm Lbs N Inch mm
Stranded BC Conductors • Cross-linked Poly Insulation • PVC Inner Jacket • Armor • Black PVC Outer Jacket

14 AWG • 7 x 22 • 14 AWG Uninsulated Ground Wire
C5701 3 .47 11.94 .67 17.02 .73 18.54 162 721 9.2 233.68
C5702 4 .51 12.95 .71 18.03 .81 20.57 216 961 9.7 246.38
12 AWG • 7 x 20 • 14 AWG Uninsulated Ground Wire
C5730 2 .48 12.19 .68 17.27 .74 18.80 172 765 9.3 236.22
C5731 3 .51 12.95 .71 18.03 .76 19.30 258 1148 9.7 246.38
C5732 4 .59 14.99 .75 19.05 .85 21.59 344 1531 10.8 274.32

10 AWG • 7 x 18 • 12 AWG Uninsulated Ground Wire
C5760 2 .56 14.22 .79 19.99 .70 17.71 296 1317 10.3 261.62
C5761 3 .59 14.99 .79 20.07 .85 21.59 444 1976 10.3 261.62
C5762 4 .65 16.51 .85 21.59 .90 22.86 592 2634 11.5 292.10
8 AWG • 7 x 16 • 10 AWG Uninsulated Ground Wire
C5583 2 .59 14.99 .78 19.81 .86 21.84 384 1709 10.6 269.24
C5581 3 .63 16.00 .83 21.08 .90 22.86 576 2563 10.8 274.32
C5582 4 .69 17.53 .89 22.61 .97 24.64 768 3418 12.5 317.50

6 AWG • 7 x 14 • 8 AWG Uninsulated Ground Wire
C5590 2 .73 18.54 .99 25.15 1.10 27.94 610 2713 12.8 325.12
C5591 3 .78 19.81 1.04 26.42 1.15 29.21 915 4072 13.4 340.36
C5592 4 .89 22.61 1.15 29.21 1.24 31.50 1220 5429 14.9 378.46

Conductor Color Codes
Conductors Colors
2 Black, White
3 Black, White, Blue
4 Black, Red, White, Blue

BC = Bare Copper • PVC = Polyvinyl Chloride
