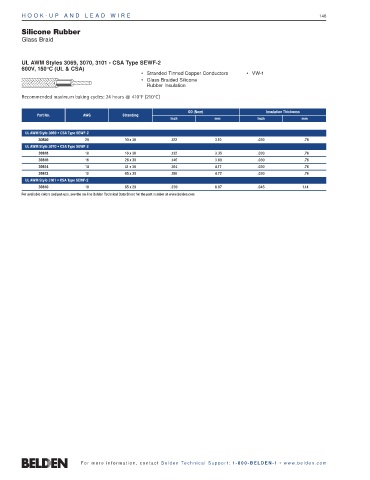

H O O K - U P A N D LE A D WIRE 146

Silicone Rubber
Glass Braid

UL AWM Styles 3069, 3070, 3101 • CSA Type SEWF-2
600V, 150°C (UL & CSA)
• Stranded Tinned Copper Conductors • VW-1
• Glass Braided Silicone
Rubber Insulation

Recommended maximum baking cycles: 24 hours @ 410°F (210°C)

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
UL AWM Style 3069 • CSA Type SEWF-2
30820 20 10 x 30 .122 3.10 .030 .76
UL AWM Style 3070 • CSA Type SEWF-2
30818 18 16 x 30 .132 3.35 .030 .76
30816 16 26 x 30 .145 3.68 .030 .76
30814 14 41 x 30 .164 4.17 .030 .76
30812 12 65 x 30 .186 4.72 .030 .76
UL AWM Style 3101 • CSA Type SEWF-2
30810 10 65 x 28 .239 6.07 .045 1.14
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com
