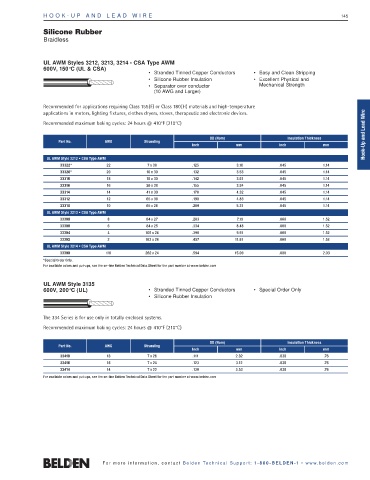

H O O K - U P A N D LE A D WIRE 145

Silicone Rubber
Braidless

UL AWM Styles 3212, 3213, 3214 • CSA Type AWM
600V, 150°C (UL & CSA)
• Stranded Tinned Copper Conductors • Easy and Clean Stripping
• Silicone Rubber Insulation • Excellent Physical and
• Separator over conductor Mechanical Strength
(10 AWG and Larger)

Recommended for applications requiring Class 155(F) or Class 180(H) materials and high-temperature
Hook-Up and Lead Wire
applications in motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices.
Recommended maximum baking cycles: 24 hours @ 410°F (210°C)

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
UL AWM Style 3212 • CSA Type AWM
33322* 22 7 x 30 .125 3.18 .045 1.14
33320* 20 10 x 30 .132 3.53 .045 1.14
33318 18 16 x 30 .142 3.61 .045 1.14
33316 16 26 x 30 .155 3.94 .045 1.14
33314 14 41 x 30 .170 4.32 .045 1.14
33312 12 65 x 30 .190 4.83 .045 1.14
33310 10 65 x 28 .209 5.31 .045 1.14
UL AWM Style 3213 • CSA Type AWM
33308 8 84 x 27 .283 7.19 .060 1.52
33306 6 84 x 25 .334 8.48 .060 1.52
33304 4 105 x 24 .390 9.91 .060 1.52
33302 2 163 x 24 .457 11.61 .060 1.52
UL AWM Style 3214 • CSA Type AWM
33390 1/0 262 x 24 .594 15.09 .080 2.03
*Special Order Only.
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

UL AWM Style 3135
600V, 200°C (UL) • Stranded Tinned Copper Conductors • Special Order Only
• Silicone Rubber Insulation

The 334 Series is for use only in totally enclosed systems.
Recommended maximum baking cycles: 24 hours @ 410°F (210°C)

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
33418 18 7 x 26 .111 2.82 .030 .76
33416 16 7 x 24 .123 3.12 .030 .76
33414 14 7 x 22 .139 3.53 .030 .76
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
