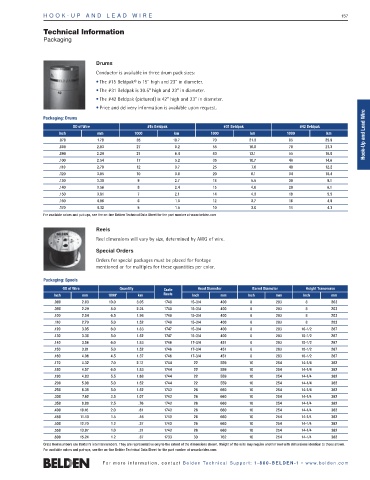

H O O K - U P A N D LE A D WIRE 157

Technical Information
Packaging

Drums
Conductor is available in three drum pack sizes:
• The #15 Beldpak® is 15" high and 23" in diameter.
• The #31 Beldpak is 30.5" high and 23" in diameter.
• The #42 Beldpak (pictured) is 42" high and 23" in diameter.
• Price and delivery information is available upon request.
Hook-Up and Lead Wire
Packaging: Drums
OD of Wire #15 Beldpak #31 Beldpak #42 Beldpak
Inch mm 1000 km 1000 km 1000 km
.070 1.78 35 10.7 70 21.3 85 25.9
.080 2.03 27 8.2 55 16.8 70 21.3
.090 2.29 21 6.4 43 13.1 55 16.8
.100 2.54 17 5.2 35 10.7 48 14.6
.110 2.79 12 3.7 25 7.6 40 12.2
.120 3.05 10 3.0 20 6.1 34 10.4
.130 3.30 9 2.7 18 5.5 30 9.1
.140 3.56 8 2.4 15 4.6 20 6.1
.150 3.81 7 2.1 14 4.3 18 5.5
.160 4.06 6 1.8 12 3.7 16 4.9
.170 4.32 5 1.5 10 3.0 14 4.3
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

Reels
Reel dimensions will vary by size, determined by AWG of wire.
Special Orders
Orders for special packages must be placed for footage
mentioned or for multiples for these quantities per color.
Packaging: Spools
OD of Wire Quantity Crate Head Diameter Barrel Diameter Height Transverse
Inch mm 1000' km Reels Inch mm Inch mm Inch mm
.080 2.03 10.0 3.05 1748 15-3/4 400 8 203 8 203
.090 2.29 8.0 2.24 1748 15-3/4 400 8 203 8 203
.100 2.54 6.5 1.98 1748 15-3/4 400 8 203 8 203
.110 2.79 5.0 1.52 1748 15-3/4 400 8 203 8 203
.120 3.05 6.0 1.83 1747 15-3/4 400 8 203 10-1/2 267
.130 3.30 5.0 1.52 1747 15-3/4 400 8 203 10-1/2 267
.140 3.56 6.0 1.83 1746 17-3/4 451 8 203 10-1/2 267
.150 3.81 5.0 1.52 1746 17-3/4 451 8 203 10-1/2 267
.160 4.06 4.5 1.37 1746 17-3/4 451 8 203 10-1/2 267
.170 4.32 7.0 2.13 1744 22 559 10 254 14-1/4 362
.180 4.57 6.0 1.83 1744 22 559 10 254 14-1/4 362
.190 4.83 5.5 1.68 1744 22 559 10 254 14-1/4 362
.200 5.08 5.0 1.52 1744 22 559 10 254 14-1/4 362
.250 6.35 5.0 1.52 1743 26 660 10 254 14-1/4 362
.300 7.62 3.5 1.07 1743 26 660 10 254 14-1/4 362
.350 8.89 2.5 .76 1743 26 660 10 254 14-1/4 362
.400 10.16 2.0 .61 1743 26 660 10 254 14-1/4 362
.450 11.43 1.5 .46 1743 26 660 10 254 14-1/4 362
.500 12.70 1.2 .37 1743 26 660 10 254 14-1/4 362
.550 13.97 1.0 .31 1743 26 660 10 254 14-1/4 362
.600 15.24 1.2 .37 1733 30 762 10 254 14-1/4 362
Crate Reel numbers are Belden’s internal numbers. They are representative only to the extent of the dimensions shown. Weight of the wire may require another reel with dimensions identical to those shown.
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com
