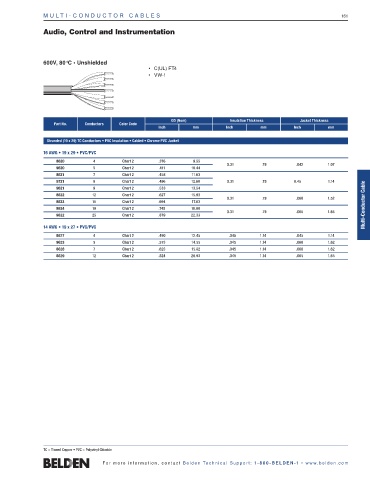

MUL T I - COND UC T O R C A BL E S 161

Audio, Control and Instrumentation

600V, 80°C • Unshielded
• C(UL) FT4
• VW-1

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm

Stranded (19 x 29) TC Conductors • PVC Insulation • Cabled • Chrome PVC Jacket
16 AWG • 19 x 29 • PVC/PVC
8620 4 Chart 2 .376 9.55
0.31 .79 .042 1.07
9620 5 Chart 2 .411 10.44
8621 7 Chart 2 .458 11.63
9721 8 Chart 2 .496 12.60 0.31 .79 0.45 1.14
9621 9 Chart 2 .533 13.54
8622 12 Chart 2 .627 15.93
0.31 .79 .060 1.52
8623 15 Chart 2 .694 17.63
8624 19 Chart 2 .740 18.80 Multi-Conductor Cable
0.31 .79 .065 1.65
9622 25 Chart 2 .879 22.33
14 AWG • 19 x 27 • PVC/PVC
8627 4 Chart 2 .490 12.45 .045 1.14 .045 1.14
9623 5 Chart 2 .573 14.55 .045 1.14 .060 1.62
8628 7 Chart 2 .623 15.82 .045 1.14 .060 1.62
8629 12 Chart 2 .824 20.93 .045 1.14 .065 1.65

TC = Tinned Copper • PVC = Polyvinyl Chloride
