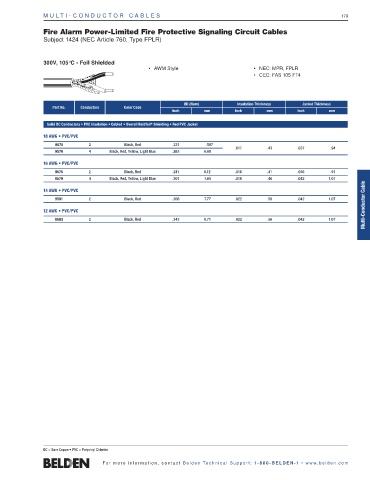

MUL T I - COND UC T O R C A BL E S 179

Fire Alarm Power-Limited Fire Protective Signaling Circuit Cables
Subject 1424 (NEC Article 760, Type FPLR)

300V, 105°C • Foil Shielded
• AWM Style • NEC: MPR, FPLR
• CEC: FAS 105 FT4

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
Solid BC Conductors • PVC Insulation • Cabled • Overall Beldfoil ® Shielding • Red PVC Jacket

18 AWG • PVC/PVC
9574 2 Black, Red .231 .587
.017 .43 .037 .94
9578 4 Black, Red, Yellow, Light Blue .263 6.68
16 AWG • PVC/PVC
9575 2 Black, Red .241 6.12 .016 .41 .036 .91
9579 4 Black, Red, Yellow, Light Blue .301 7.65 .018 .46 .042 1.07
Multi-Conductor Cable
14 AWG • PVC/PVC
9581 2 Black, Red .306 7.77 .022 .56 .042 1.07
12 AWG • PVC/PVC
9583 2 Black, Red .343 8.71 .022 .56 .042 1.07

BC = Bare Copper• PVC = Polyvinyl Chloride
