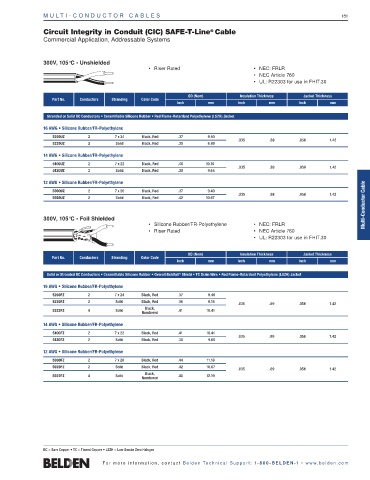

MUL T I - COND UC T O R C A BL E S 181

®
Circuit Integrity in Conduit (CIC) SAFE-T-Line Cable
Commercial Application, Addressable Systems

300V, 105°C • Unshielded
• Riser Rated • NEC: FRLR
• NEC Article 760
• UL: R22303 for use in FHIT.30

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Stranding Color Code
Inch mm Inch mm Inch mm
Stranded or Solid BC Conductors • Ceramifiable Silicone Rubber • Red Flame-Retardant Polyethylene (LSZH) Jacket
16 AWG • Silicone Rubber/FR-Polyethylene
5200UZ 2 7 x 24 Black, Red .37 9.40
.035 .89 .056 1.42
5220UZ 2 Solid Black, Red .35 8.89
14 AWG • Silicone Rubber/FR-Polyethylene
5100UZ 2 7 x 22 Black, Red .40 10.16
.035 .89 .056 1.42
5120UZ 2 Solid Black, Red .38 9.65
Multi-Conductor Cable
12 AWG • Silicone Rubber/FR-Polyethylene
5000UZ 2 7 x 20 Black, Red .37 9.40
.035 .89 .056 1.42
5020UZ 2 Solid Black, Red .42 10.67

300V, 105°C • Foil Shielded
• Silicone Rubber/FR-Polyethylene • NEC: FRLR
• Riser Rated • NEC Article 760
• UL: R22303 for use in FHIT.30

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Stranding Color Code
Inch mm Inch mm Inch mm
Solid or Stranded BC Conductors • Ceramifiable Silicone Rubber • Overall Beldfoil ® Shield • TC Drain Wire • Red Flame-Retardant Polyethylene (LSZH) Jacket

16 AWG • Silicone Rubber/FR-Polyethylene
5200FZ 2 7 x 24 Black, Red .37 9.40
5220FZ 2 Solid Black, Red .36 9.14
.035 .89 .056 1.42
Black,
5222FZ 4 Solid .41 10.41
Numbered
14 AWG • Silicone Rubber/FR-Polyethylene
5100FZ 2 7 x 22 Black, Red .41 10.41
.035 .89 .056 1.42
5120FZ 2 Solid Black, Red .38 9.65
12 AWG • Silicone Rubber/FR-Polyethylene
5000FZ 2 7 x 20 Black, Red .44 11.18
5020FZ 2 Solid Black, Red .42 10.67
.035 .89 .056 1.42
Black,
5022FZ 4 Solid .48 12.19
Numbered

BC = Bare Copper • TC = Tinned Copper • LSZH = Low Smoke Zero Halogen
