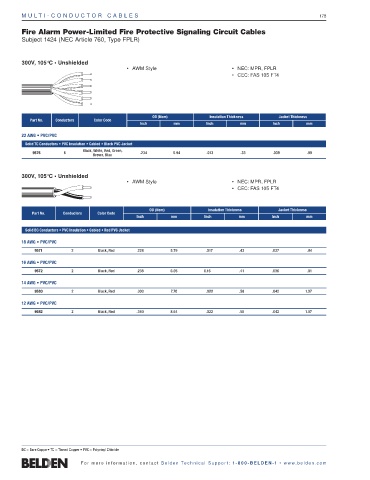

MUL T I - COND UC T O R C A BL E S 178
Fire Alarm Power-Limited Fire Protective Signaling Circuit Cables
Subject 1424 (NEC Article 760, Type FPLR)
300V, 105°C • Unshielded
• AWM Style • NEC: MPR, FPLR
• CEC: FAS 105 FT4
OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
22 AWG • PVC/PVC
Solid TC Conductors • PVC Insulation • Cabled • Black PVC Jacket
Black, White, Red, Green,
9576 6 .234 5.94 .013 .33 .039 .99
Brown, Blue
300V, 105°C • Unshielded
• AWM Style • NEC: MPR, FPLR
• CEC: FAS 105 FT4
OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
Solid BC Conductors • PVC Insulation • Cabled • Red PVC Jacket
18 AWG • PVC/PVC
9571 2 Black, Red .228 5.79 .017 .43 .037 .94
16 AWG • PVC/PVC
9572 2 Black, Red .238 6.05 0.16 .41 .036 .91
14 AWG • PVC/PVC
9580 2 Black, Red .303 7.70 .022 .56 .042 1.07
12 AWG • PVC/PVC
9582 2 Black, Red .340 8.64 .022 .56 .042 1.07
BC = Bare Copper• TC = Tinned Copper • PVC = Polyvinyl Chloride
