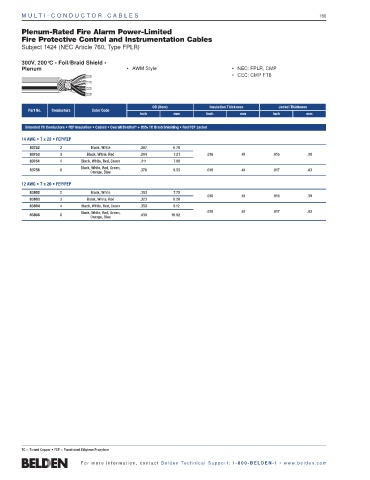

MUL T I - COND UC T O R C A BL E S 180

Plenum-Rated Fire Alarm Power-Limited
Fire Protective Control and Instrumentation Cables
Subject 1424 (NEC Article 760, Type FPLR)

300V, 200°C • Foil/Braid Shield •
Plenum • AWM Style • NEC: FPLR, CMP
• CEC: CMP FT6

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
Stranded TC Conductors • FEP Insulation • Cabled • Overall Beldfoil ® + 85% TC Braid Shielding • Red FEP Jacket
14 AWG • 7 x 22 • FEP/FEP
83752 2 Black, White .267 6.78
83753 3 Black, White, Red .284 7.21 .016 .41 .015 .38
83754 4 Black, White, Red, Green .311 7.90
Black, White, Red, Green,
83756 6 .376 9.55 .016 .41 .017 .43
Orange, Blue
12 AWG • 7 x 20 • FEP/FEP
83802 2 Black, White .303 7.70
.016 .41 .015 .38
83803 3 Black, White, Red .323 8.20
83804 4 Black, White, Red, Green .359 9.12
.016 .41 .017 .43
Black, White, Red, Green,
83806 6 .430 10.92
Orange, Blue

TC = Tinned Copper • FEP = Fluorinated Ethylene Propylene

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
