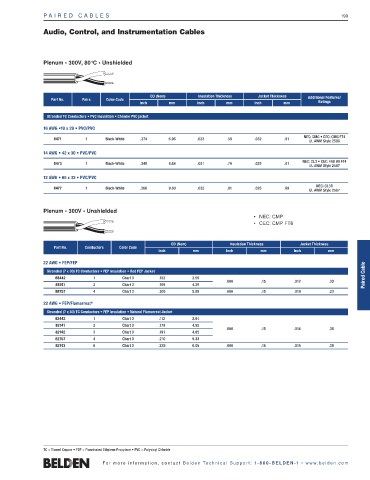

PA I R E D C A B L E S 199

Audio, Control, and Instrumentation Cables

Plenum • 300V, 80°C • Unshielded

OD (Nom) Insulation Thickness Jacket Thickness Additional Features/
Part No. Pairs Color Code
Inch mm Inch mm Inch mm Ratings
Stranded TC Conductors • PVC Insulation • Chrome PVC jacket
16 AWG •19 x 29 • PVC/PVC
NEC: CMG • CEC: CMG FT4
8471 1 Black-White .274 6.96 .023 .58 .032 .81
UL AWM Style 2598
14 AWG • 42 x 30 • PVC/PVC
NEC: CL3 • CEC: FAS 90 FT4
8473 1 Black-White .340 8.64 .031 .79 .032 .81
UL AWM Style 2587
12 AWG • 65 x 32 • PVC/PVC
NEC: CL3R
8477 1 Black-White .386 9.80 .032 .81 .035 .89
UL AWM Style 2587

Plenum • 300V • Unshielded
• NEC: CMP
• CEC: CMP FT6

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
22 AWG • FEP/FEP
Stranded (7 x 30) TC Conductors • FEP Insulation • Red FEP Jacket
88442 1 Chart 3 .102 2.59 Paired Cable
.006 .15 .012 .30
88741 2 Chart 3 .169 4.29
88757 4 Chart 3 .200 5.08 .006 .15 .019 .23
22 AWG • FEP/Flamarrest ®
Stranded (7 x 30) TC Conductors • FEP Insulation • Natural Flamarrest Jacket
82442 1 Chart 3 .112 2.84
82741 2 Chart 3 .179 4.55
.006 .15 .014 .36
82742 3 Chart 3 .191 4.85
82757 4 Chart 3 .210 5.33
82743 6 Chart 3 .238 6.05 .006 .15 .015 .38

TC = Tinned Copper • FEP = Fluorinated Ethylene Propylene • PVC = Polyvinyl Chloride
