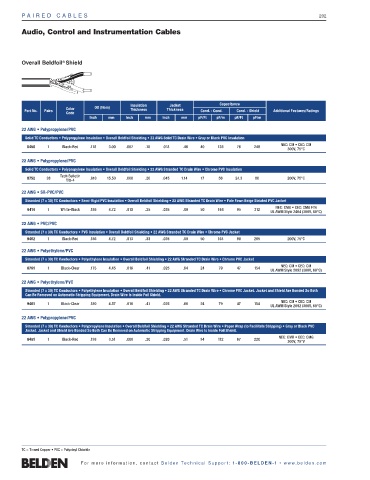

PA I R E D C A B L E S 202

Audio, Control and Instrumentation Cables

®
Overall Beldfoil Shield

Insulation Jacket Capacitance
Color OD (Nom) Thickness Thickness
Part No. Pairs Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
22 AWG • Polypropylene/PVC
Solid TC Conductors • Polypropylene Insulation • Overall Beldfoil Shielding • 22 AWG Solid TC Drain Wire • Gray or Black PVC Insulation
NEC: CM • CEC: CM
8450 1 Black-Red .118 3.00 .007 .18 .018 .46 40 133 76 249
300V, 75°C
22 AWG • Polypropylene/PVC
Solid TC Conductors • Polypropylene Insulation • Overall Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • Chrome PVC Insulation
Tech Bulletin
8752 38 .610 15.50 .008 .20 .045 1.14 17 56 24.3 80 200V, 75°C
T/8-4
22 AWG • SR-PVC/PVC
Stranded (7 x 30) TC Conductors • Semi-Rigid PVC Insulation • Overall Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • Pale Fawn Beige Striated PVC Jacket
NEC: CMG • CEC: CMG FT4
9414 1 White-Black .186 4.72 .010 .25 .035 .89 50 164 95 312
UL AWM Style 2464 (300V, 80°C)
22 AWG • PVC/PVC
Stranded (7 x 30) TC Conductors • PVC Insulation • Overall Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • Chrome PVC Jacket
9462 1 Black-Red .186 4.72 .013 .33 .035 .89 50 164 90 295 200V, 75°C
22 AWG • Polyethylene/PVC
Stranded (7 x 30) TC Conductors • Polyethylene Insulation • Overall Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • Chrome PVC Jacket
NEC: CM • CEC: CM
8761 1 Black-Clear .175 4.45 .016 .41 .025 .64 24 79 47 154
UL AWM Style 2092 (300V, 60°C)
22 AWG • Polyethylene/PVC
Stranded (7 x 30) TC Conductors • Polyethylene Insulation • Overall Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • Chrome PVC Jacket. Jacket and Shield Are Bonded So Both
Can Be Removed on Automatic Stripping Equipment. Drain Wire Is Inside Foil Shield.
NEC: CM • CEC: CM
9461 1 Black-Clear .180 4.57 .016 .41 .026 .66 24 79 47 154
UL AWM Style 2092 (300V, 60°C)
22 AWG • Polypropylene/PVC
Stranded (7 x 30) TC Conductors • Polypropylene Insulation • Overall Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • Paper Wrap (to Facilitate Stripping) • Gray or Black PVC
Jacket. Jacket and Shield Are Bonded So Both Can Be Removed on Automatic Stripping Equipment. Drain Wire Is Inside Foil Shield.
NEC: CMR • CEC: CMG
8451 1 Black-Red .138 3.51 .008 .20 .020 .51 34 112 67 220
300V, 75°V

TC = Tinned Copper • PVC = Polyvinyl Chloride
