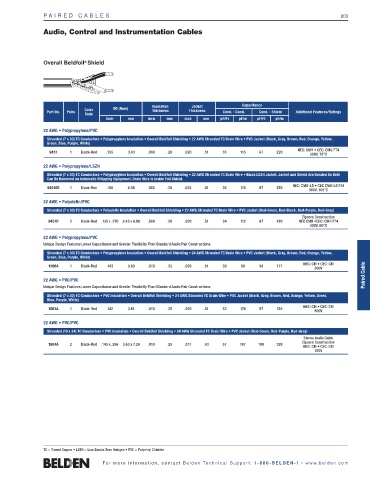

PA I R E D C A B L E S 203

Audio, Control and Instrumentation Cables

®
Overall Beldfoil Shield

Insulation Jacket Capacitance
Color OD (Nom) Thickness Thickness
Part No. Pairs Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
22 AWG • Polypropylene/PVC
Stranded (7 x 30) TC Conductors • Polypropylene Insulation • Overall Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • PVC Jacket (Black, Gray, Brown, Red, Orange, Yellow,
Green, Blue, Purple, White)
NEC: CMR • CEC: CMG FT4
9451 1 Black-Red .135 3.43 .008 .20 .020 .51 35 115 67 220
300V, 75°C
22 AWG • Polypropylene/LSZH
Stranded (7 x 30) TC Conductors • Polypropylene Insulation • Overall Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • Black LSZH Jacket. Jacket and Shield Are Bonded So Both
Can Be Removed on Automatic Stripping Equipment. Drain Wire Is Inside Foil Shield.
NEC: CMG-LS • CEC CMG-LS FT4
9451SB 1 Black-Red .160 4.06 .008 .20 .032 .81 35 115 67 220
300V, 105°C
22 AWG • Polyolefin/PVC
Stranded (7 x 30) TC Conductors • Polyolefin Insulation • Overall Beldfoil Shielding • 22 AWG Stranded TC Drain Wire • PVC Jacket (Red-Green, Red-Black, Red-Purple, Red-Gray)
Zipcord Construction
9451D 2 Black-Red .135 x .270 3.43 x 6.86 .008 .20 .020 .51 34 112 67 220 NEC CMR •CEC: CMR FT4
300V, 60°C

22 AWG • Polypropylene/PVC
Unique Design Features Lower Capacitance and Greater Flexibility Than Standard Audio Pair Constructions.
Stranded (7 x 30) TC Conductors • Polypropylene Insulation • Overall Beldfoil Shielding • 24 AWG Stranded TC Drain Wire • PVC Jacket (Black, Gray, Brown, Red, Orange, Yellow,
Green, Blue, Purple, White)
NEC: CM • CEC: CM
1266A 1 Black-Red .143 3.63 .010 .25 .020 .51 30 99 54 177
300V
22 AWG • PVC/PVC Paired Cable
Unique Design Features Lower Capacitance and Greater Flexibility Than Standard Audio Pair Constructions.
Stranded (7 x 30) TC Conductors • PVC Insulation • Overall Beldfoil Shielding • 24 AWG Stranded TC Drain Wire • PVC Jacket (Black, Gray, Brown, Red, Orange, Yellow, Green,
Blue, Purple, White)
NEC: CM • CEC: CM
1503A 1 Black-Red .142 3.61 .010 .25 .020 .51 53 174 97 318
300V
22 AWG • PVC/PVC
Stranded (19 x 34) TC Conductors • PVC Insulation • Overall Beldfoil Shielding • 24 AWG Stranded TC Drain Wire • PVC Jacket (Red-Green, Red-Purple, Red-Gray)
Stereo Audio Cable
Zipcord Construction
1504A 2 Black-Red .143 x .286 3.63 x 7.26 .010 .25 .017 .43 57 187 100 328
NEC: CM • CEC: CM
150V

TC = Tinned Copper • LSZH = Low Smoke Zero Halogen • PVC = Polyvinyl Chloride
