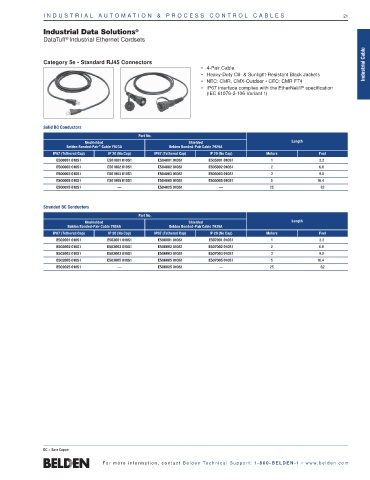

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 21

Industrial Data Solutions ®
®
DataTuff Industrial Ethernet Cordsets
Industrial Cable
Category 5e • Standard RJ45 Connectors
• 4-Pair Cable
• Heavy-Duty Oil- & Sunlight-Resistant Black Jackets
• NEC: CMR, CMX-Outdoor • CEC: CMR FT4
• IP67 interface complies with the EtherNet/IP specification
(IEC 61076-3-106 Variant 1)

Solid BC Conductors
Part No.
Unshielded Shielded Length
Belden Bonded-Pair ™ Cable 7923A Belden Bonded-Pair Cable 7929A
IP67 (Tethered Cap) IP 20 (No Cap) IP67 (Tethered Cap) IP 20 (No Cap) Meters Feet
E500001 010S1 E501001 010S1 E504001 010S1 E505001 010S1 1 3.3
E500002 010S1 E501002 010S1 E504002 010S1 E505002 010S1 2 6.6
E500003 010S1 E501003 010S1 E504003 010S1 E505003 010S1 3 9.8
E500005 010S1 E501005 010S1 E504005 010S1 E505005 010S1 5 16.4
E500025 010S1 — E504025 010S1 — 25 82

Stranded BC Conductors
Part No.
Unshielded Shielded Length
Belden Bonded-Pair Cable 7924A Belden Bonded-Pair Cable 7939A
IP67 (Tethered Cap) IP 20 (No Cap) IP67 (Tethered Cap) IP 20 (No Cap) Meters Feet
E502001 010S1 E503001 010S1 E506001 010S1 E507001 010S1 1 3.3
E502002 010S1 E503002 010S1 E506002 010S1 E507002 010S1 2 6.6
E502003 010S1 E503003 010S1 E506003 010S1 E507003 010S1 3 9.8
E502005 010S1 E503005 010S1 E506005 010S1 E507005 010S1 5 16.4
E502025 010S1 — E506025 010S1 — 25 82

BC = Bare Copper

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
