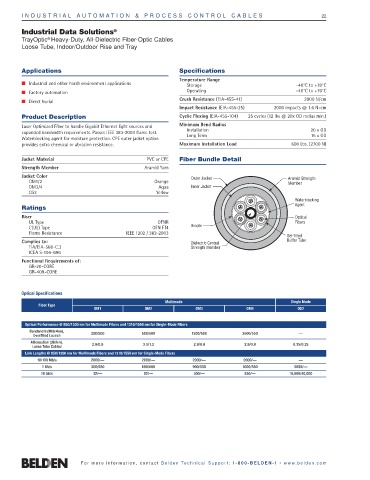

TrayOptic Heavy-Duty, All-Dielectric Fiber-Optic Cables
Loose Tube, Indoor/Outdoor Rise and Tray

Applications Specifications
Temperature Range
Q Industrial and other harsh environment applications
Storage -40°C to +70°C
Q Factory automation Operating -40°C to +70°C
Crush Resistance (EIA-455-41) 2000 N/cm
Q Direct burial
Impact Resistance (EIA-455-25) 2000 impacts @ 1.6 N-cm
Product Description Cyclic Flexing (EIA-455-104) 25 cycles (12 lbs @ 20x OD radius min.)
Minimum Bend Radius
Laser Optimized Fiber to handle Gigabit Ethernet light sources and
Installation 20 x OD
expanded bandwidth requirements. Passes IEEE 383-2003 flame test.
Long Term 15 x OD
Waterblocking agent for moisture protection. CPE outer jacket option
provides extra chemical or abrasion resistance. Maximum Installation Load 600 Lbs. (2700 N)
Jacket Material PVC or CPE Fiber Bundle Detail
Strength Member Aramid Yarn
Jacket Color
Outer Jacket Aramid Strength
OM1/2 Orange Member
OM3/4 Aqua Inner Jacket
OS2 Yellow
Waterblocking
Agent
Ratings
Riser Optical
UL Type OFNR Fibers
Binder
C(UL) Type OFN FT4
Flame Resistance IEEE 1202 / 383-2003
Gel-filled
Complies to: Dielectric Central Buffer Tube
TIA/EIA-568-C.3 Strength Member
ICEA S-104-696
Functional Requirements of:
GR-20-CORE
GR-409-CORE

Optical Specifications
Multimode Single Mode
Fiber Type
OM1 OM2 OM3 OM4 OS2

Optical Performance @ 850/1300 nm for Multimode Fibers and 1310/1550 nm for Single-Mode Fibers
Bandwidth (MHz•km),
Overfilled Launch 200/500 500/500 1500/500 3500/550 —
Attenuation (dB/km),
Loose Tube Cabled 2.9/0.9 3.5/1.2 2.9/0.9 2.9/0.9 0.35/0.25
Link Lengths @ 850/1300 nm for Multimode Fibers and 1310/1550 nm for Single-Mode Fibers
10/100 Mb/s 2000/— 2000/— 2000/— 2000/— —
1 Gb/s 300/550 600/600 900/550 1000/550 5000/—
10 Gb/s 32/— 82/— 300/— 550/— 10,000/40,000
