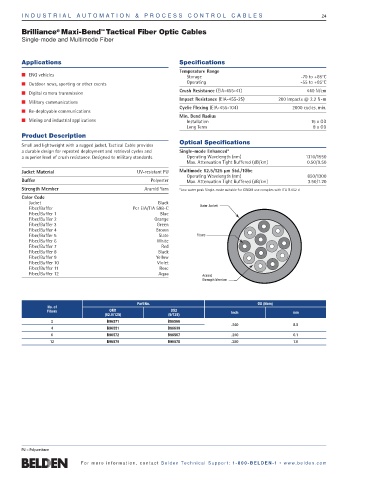

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 24

®
™
Brilliance Maxi-Bend Tactical Fiber Optic Cables
Single-mode and Multimode Fiber

Applications Specifications
Temperature Range
Q ENG vehicles
Storage -70 to +85°C
Q Outdoor news, sporting or other events Operating -55 to +85°C
Crush Resistance (EIA-455-41) 440 N/cm
Q Digital camera transmission
Impact Resistance (EIA-455-25) 200 Impacts @ 2.2 N-m
Q Military communications
Cyclic Flexing (EIA-455-104) 2000 cycles, min.
Q Re-deployable communications
Min. Bend Radius
Q Mining and industrial applications Installation 15 x OD
Long Term 8 x OD
Product Description
Optical Specifications
Small and lightweight with a rugged jacket, Tactical Cable provides
a durable design for repeated deployment and retrieval cycles and Single-mode Enhanced*
a superior level of crush resistance. Designed to military standards. Operating Wavelength (nm) 1310/1550
Max. Attenuation Tight Buffered (dB/km) 0.50/0.50
Jacket Material UV-resistant PU Multimode 62.5/125 μm Std./1Gbe
Operating Wavelength (nm) 850/1300
Buffer Polyester Max. Attenuation Tight Buffered (dB/km) 3.50/1.20
Strength Member Aramid Yarn *Low water peak Single-mode suitable for CWDM use complies with ITU G.652 d
Color Code
Jacket Black
Outer Jacket
Fiber/Buffer Per EIA/TIA 598-C
Fiber/Buffer 1 Blue
Fiber/Buffer 2 Orange
Fiber/Buffer 3 Green
Fiber/Buffer 4 Brown
Fiber/Buffer 5 Slate Fibers
Fiber/Buffer 6 White
Fiber/Buffer 7 Red
Fiber/Buffer 8 Black
Fiber/Buffer 9 Yellow
Fiber/Buffer 10 Violet
Fiber/Buffer 11 Rose
Fiber/Buffer 12 Aqua
Aramid
Strength Member

Part No. OD (Nom)
No. of
Fibers OM1 OS2 Inch mm
(62.5/125) (9/125)
2 B96571 B96566
.240 6.0
4 B96551 B96639
6 B96572 B96567 .240 6.1
12 B96575 B96570 .280 7.0

PU = Polyurethane
