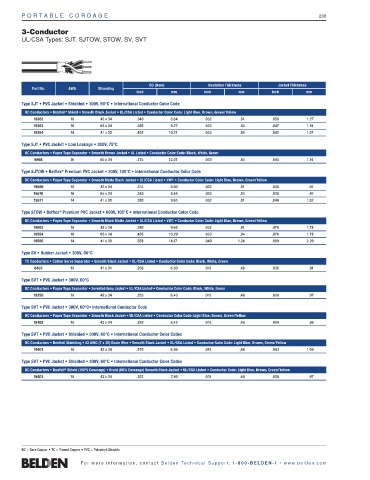

POR T A B LE CORD A G E 236

3-Conductor
UL/CSA Types: SJT. SJTOW, STOW, SV, SVT

OD (Nom) Insulation Thickness Jacket Thickness
Part No. AWG Stranding
Inch mm Inch mm Inch mm
Type SJT • PVC Jacket • Shielded • 300V, 60°C • International Conductor Color Code
BC Conductors • Beldfoil ® Shield • Smooth Black Jacket • UL/CSA Listed • Conductor Color Code: Light Blue, Brown, Green/Yellow
19362 18 42 x 34 .340 8.64 .032 .81 .050 1.27
19363 16 65 x 34 .365 9.27 .033 .84 .047 1.19
19364 14 41 x 30 .402 10.21 .033 .84 .042 1.07
Type SJT • PVC Jacket • Low Leakage • 300V, 75°C
BC Conductors • Paper Tape Separator • Smooth Brown Jacket • UL Listed • Conductor Color Code: Black, White, Green
9998 16 65 x 34 .475 12.07 .033 .84 .045 1.14
Type SJTOW • Belflex Premium PVC Jacket • 300V, 105°C • International Conductor Color Code
®
BC Conductors • Paper Tape Separator • Smooth Matte Black Jacket • UL/CSA Listed • VW1 • Conductor Color Code: Light Blue, Brown, Green/Yellow
19509 18 42 x 34 .315 8.00 .032 .81 .038 .97
19510 16 65 x 34 .340 8.64 .033 .84 .038 .97
19511 14 41 x 30 .380 9.65 .032 .81 .040 1.02
Type STOW • Belflex Premium PVC Jacket • 600V, 105°C • International Conductor Color Code
®
BC Conductors • Paper Tape Separator • Smooth Black Matte Jacket • UL/CSA Listed • VW1 • Conductor Color Code: Light Blue, Brown, Green/Yellow
19503 18 42 x 34 .380 9.65 .032 .81 .070 1.78
19504 16 65 x 34 .405 10.29 .033 .84 .070 1.78
19505 14 41 x 30 .558 14.17 .049 1.24 .089 2.26

Type SV • Rubber Jacket • 300V, 60°C
TC Conductors • Cotton Serve Separator • Smooth Black Jacket • UL/CSA Listed • Conductor Color Code: Black, White, Green
8453 18 41 x 34 .256 6.50 .018 .46 .036 .91
Type SVT • PVC Jacket • 300V, 60°C
BC Conductors • Paper Tape Separator • Serrated Gray Jacket • UL/CSA Listed • Conductor Color Code: Black, White, Green
19350 18 42 x 34 .253 6.43 .018 .46 .038 .97
Type SVT • PVC Jacket • 300V, 60°C• International Conductor Code
BC Conductors • Paper Tape Separator • Smooth Black Jacket • UL/CSA Listed • Conductor Color Code: Light Blue, Brown, Green/Yellow
19402 18 42 x 34 .253 6.43 .018 .46 .034 .86

Type SVT • PVC Jacket • Shielded • 300V, 60°C • International Conductor Color Codes
BC Conductors • Beldfoil Shielding • 22 AWG (7 x 30) Drain Wire • Smooth Black Jacket • UL/CSA Listed • Conductor Color Code: Light Blue, Brown, Green/Yellow
19401 18 42 x 34 .270 6.86 .018 .46 .043 1.09
Type SVT • PVC Jacket • Shielded • 300V, 60°C • International Conductor Color Codes
BC Conductors • Duofoil ® Shield (100% Coverage) • Braid (88% Coverage) Smooth Black Jacket • UL/CSA Listed • Conductor Code: Light Blue, Brown, Green/Yellow
19403 18 42 x 34 .307 7.80 .018 .46 .038 .97

BC = Bare Copper • TC = Tinned Copper • PVC = Polyvinyl Chloride
