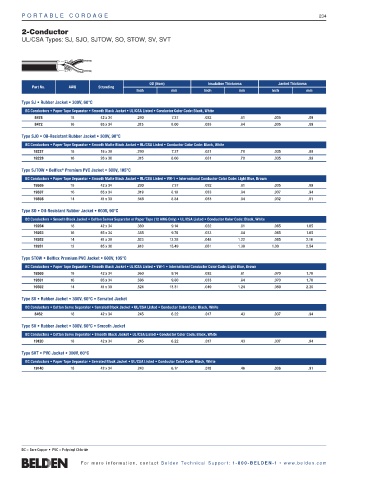

POR T A B LE CORD A G E                                                                            234

        2-Conductor
        UL/CSA Types: SJ, SJO, SJTOW, SO, STOW, SV, SVT







                                                  OD (Nom)            Insulation Thickness   Jacket Thickness
            Part No.    AWG       Stranding
                                              Inch        mm         Inch       mm         Inch       mm
        Type SJ • Rubber Jacket • 300V, 60°C
         BC Conductors • Paper Tape Separator • Smooth Black Jacket • UL/CSA Listed • Conductor Color Code: Black, White
             8478       18        42 x 34     .290        7.37       .032       .81         .035       .89
            8472        16        65 x 34     .315        8.00       .033       .84         .035       .89

        Type SJO • Oil-Resistant Rubber Jacket • 300V, 90°C
         BC Conductors • Paper Tape Separator • Smooth Matte Black Jacket • UL/CSA Listed • Conductor Color Code: Black, White
            19227       18        16 x 30     .290        7.37       .031       .79         .035       .89
            19228       16        26 x 30     .315        8.00       .031       .79         .035       .89

        Type SJTOW • Belflex  Premium PVC Jacket • 300V, 105°C
                     ®
         BC Conductors • Paper Tape Separator • Smooth Matte Black Jacket • UL/CSA Listed • VW-1 • International Conductor Color Code: Light Blue, Brown
            19506       18        42 x 34     .290        7.37       .032       .81         .035       .89
            19507       16        65 x 34     .319        8.10       .033       .84         .037       .94
            19508       14        41 x 30     .348        8.84       .033       .84         .032       .81
        Type SO • Oil-Resistant Rubber Jacket • 600V, 90°C
         BC Conductors • Smooth Black Jacket • Cotton Server Separator or Paper Tape (12 AWG Only) • UL/CSA Listed • Conductor Color Code: Black, White
            19204       18        42 x 34     .360        9.14       .032       .81         .065      1.65
            19203       16        65 x 34     .385        9.78       .033       .84         .065      1.65
            19202       14        41 x 30     .523       13.28       .048       1.22        .085      2.16
            19201       12        65 x 30     .610       15.49       .051       1.30       1.00       2.54

        Type STOW • Belflex Premium PVC Jacket • 600V, 105°C
         BC Conductors • Paper Tape Separator • Smooth Black Jacket • UL/CSA Listed • VW-1 • International Conductor Color Code: Light Blue, Brown
            19500       18        42 x 34     .360        9.14       .032       .81         .070      1.78
            19501       16        65 x 34     .386        9.80       .033       .84         .070      1.78
            19502       14        41 x 30     .524       13.31       .049       1.24        .089      2.26
        Type SV • Rubber Jacket • 300V, 60°C • Serrated Jacket
         BC Conductors • Cotton Serve Separator • Serrated Black Jacket • UL/CSA Listed • Conductor Color Code: Black, White
            8452        18        42 x 34     .245        6.22       .017       .43         .037       .94

        Type SV • Rubber Jacket • 300V, 60°C • Smooth Jacket
         BC Conductors • Cotton Serve Separator • Smooth Black Jacket • UL/CSA Listed • Conductor Color Code: Black, White
            19120       18        42 x 34     .245        6.22       .017       .43         .037       .94
        Type SVT • PVC Jacket • 300V, 60°C
         BC Conductors • Paper Tape Separator • Serrated Black Jacket • UL/CSA Listed • Conductor Color Code: Black, White
            19140       18        42 x 34     .243        6.17       .018       .46         .036       .91














        BC = Bare Copper •  PVC = Polyvinyl Chloride

                            Fo r  m o r e  i n fo r m at i o n,  c o n t a c t   Be ld e n  Te ch n i ca l  S u ppo r t :   1- 8 0 0 - B E L D E N -1  •  www. b e l d e n . c o m
