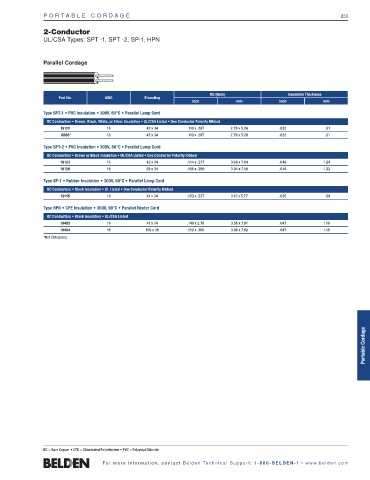

POR T A B LE CORD A G E 233

2-Conductor
UL/CSA Types: SPT -1, SPT -2, SP-1, HPN

Parallel Cordage

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
Type SPT-1 • PVC Insulation • 300V, 60°C • Parallel Lamp Cord
BC Conductors • Brown, Black, White, or Silver Insulation • UL/CSA Listed • One Conductor Polarity Ribbed
19122 18 42 x 34 .110 x .207 2.79 x 5.26 .032 .81
8888* 18 42 x 34 .110 x .207 2.79 x 5.26 .032 .81
Type SPT-2 • PVC Insulation • 300V, 60°C • Parallel Lamp Cord
BC Conductors • Brown or Black Insulation • UL/CSA Listed • One Conductor Polarity Ribbed
19123 18 42 x 34 .144 x .277 3.66 x 7.04 .049 1.24
19126 16 65 x 34 .155 x .299 3.94 x 7.59 .048 1.22

Type SP-1 • Rubber Insulation • 300V, 60°C • Parallel Lamp Cord
BC Conductors • Black Insulation • UL Listed • One Conductor Polarity Ribbed
19115 18 41 x 34 .123 x .227 3.12 x 5.77 .035 .89
Type HPN • CPE Insulation • 300V, 90°C • Parallel Heater Cord
BC Conductors • Black Insulation • UL/CSA Listed
19405 18 41 x 34 .140 x 2.76 3.56 x 7.01 .047 1.18
19404 16 105 x 36 .152 x .300 3.86 x 7.62 .047 1.18
*Not CSA Listed.

Portable Cordage

BC = Bare Copper • CPE = Chlorinated Polyethylene • PVC = Polyvinyl Chloride
