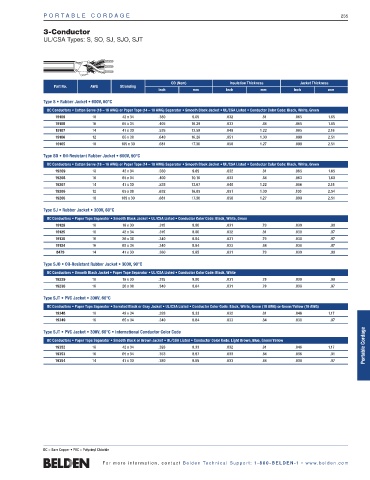

POR T A B LE CORD A G E 235

3-Conductor
UL/CSA Types: S, SO, SJ, SJO, SJT

OD (Nom) Insulation Thickness Jacket Thickness
Part No. AWG Stranding
Inch mm Inch mm Inch mm
Type S • Rubber Jacket • 600V, 60°C
BC Conductors • Cotton Serve (18 – 16 AWG) or Paper Tape (14 – 10 AWG) Separator • Smooth Black Jacket • UL/CSA Listed • Conductor Color Code: Black, White, Green
19109 18 42 x 34 .380 9.65 .032 .81 .065 1.65
19108 16 65 x 34 .405 10.29 .033 .84 .065 1.65
19107 14 41 x 30 .535 13.59 .048 1.22 .085 2.16
19106 12 65 x 30 .640 16.26 .051 1.30 .099 2.51
19105 10 105 x 30 .681 17.30 .050 1.27 .099 2.51

Type SO • Oil-Resistant Rubber Jacket • 600V, 90°C
BC Conductors • Cotton Serve (18 – 16 AWG) or Paper Tape (14 – 10 AWG) Separator • Smooth Black Jacket • UL/CSA Listed • Conductor Color Code: Black, White, Green
19209 18 42 x 34 .380 9.65 .032 .81 .065 1.65
19208 16 65 x 34 .400 10.16 .033 .84 .063 1.60
19207 14 41 x 30 .538 13.67 .048 1.22 .086 2.18
19206 12 65 x 30 .632 16.05 .051 1.30 .100 2.54
19205 10 105 x 30 .681 17.30 .050 1.27 .099 2.51

Type SJ • Rubber Jacket • 300V, 60°C
BC Conductors • Paper Tape Separator • Smooth Black Jacket • UL/CSA Listed • Conductor Color Code: Black, White, Green
19129 18 16 x 30 .315 8.00 .031 .79 .039 .99
19125 18 42 x 34 .315 8.00 .032 .81 .038 .97
19130 16 26 x 30 .340 8.64 .031 .79 .038 .97
19124 16 65 x 34 .340 8.64 .033 .84 .038 .97
8479 14 41 x 30 .380 9.65 .031 .79 .039 .99
Type SJO • Oil-Resistant Rubber Jacket • 300V, 90°C
BC Conductors • Smooth Black Jacket • Paper Tape Separator • UL/CSA Listed • Conductor Color Code: Black, White
19229 18 16 x 30 .315 8.00 .031 .79 .039 .99
19230 16 26 x 30 .340 8.64 .031 .79 .038 .97
Type SJT • PVC Jacket • 300V, 60°C
BC Conductors • Paper Tape Separator • Serrated Black or Gray Jacket • UL/CSA Listed • Conductor Color Code: Black, White, Green (18 AWG) or Green/Yellow (16 AWG)
19348 18 42 x 34 .328 8.33 .032 .81 .046 1.17
19349 16 65 x 34 .340 8.84 .033 .84 .038 .97
Portable Cordage
Type SJT • PVC Jacket • 300V, 60°C • International Conductor Color Code
BC Conductors • Paper Tape Separator • Smooth Black or Brown Jacket • UL/CSA Listed • Conductor Color Code: Light Brown, Blue, Green/Yellow
19352 18 42 x 34 .328 8.33 .032 .81 .046 1.17
19353 16 65 x 34 .353 8.97 .033 .84 .036 .91
19354 14 41 x 30 .380 9.65 .033 .84 .038 .97

BC = Bare Copper • PVC = Polyvinyl Chloride
