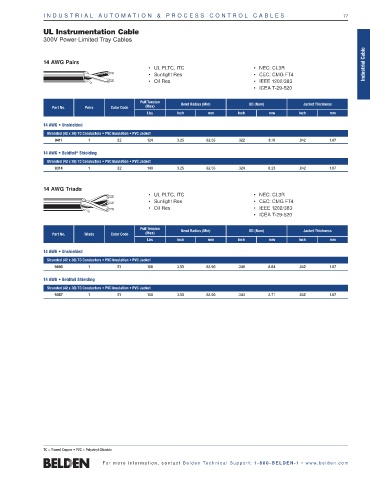

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 77

UL Instrumentation Cable
300V Power-Limited Tray Cables
Industrial Cable
14 AWG Pairs
• UL PLTC, ITC • NEC: CL3R
• Sunlight Res • CEC: CMG FT4
• Oil Res • IEEE 1202/383
• ICEA T-29-520

Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Pairs Color Code (Max)
Lbs Inch mm Inch mm Inch mm
14 AWG • Unshielded
Stranded (42 x 30) TC Conductors • PVC Insulation • PVC Jacket
9411 1 E2 124 3.25 82.55 .322 8.18 .042 1.07
14 AWG • Beldfoil Shielding
®
Stranded (42 x 30) TC Conductors • PVC Insulation • PVC Jacket
9314 1 E2 140 3.25 82.55 .324 8.23 .042 1.07

14 AWG Triads
• UL PLTC, ITC • NEC: CL3R
• Sunlight Res • CEC: CMG FT4
• Oil Res • IEEE 1202/383
• ICEA T-29-520

Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Triads Color Code (Max)
Lbs Inch mm Inch mm Inch mm

14 AWG • Unshielded
Stranded (42 x 30) TC Conductors • PVC Insulation • PVC Jacket
9495 1 E1 186 3.50 88.90 .340 8.64 .042 1.07
14 AWG • Beldfoil Shielding
Stranded (42 x 30) TC Conductors • PVC Insulation • PVC Jacket
9367 1 E1 188 3.50 88.90 .343 8.71 .042 1.07

TC = Tinned Copper • PVC = Polyvinyl Chloride

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
