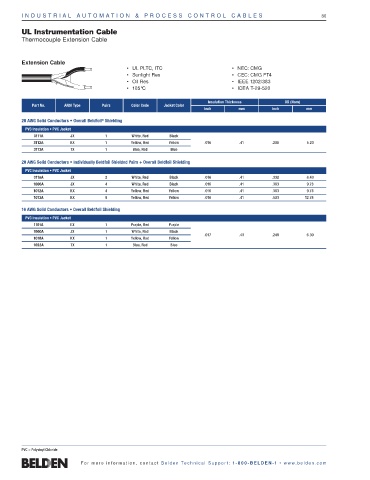

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 80

UL Instrumentation Cable
Thermocouple Extension Cable

Extension Cable
• UL PLTC, ITC • NEC: CMG
• Sunlight Res • CEC: CMG FT4
• Oil Res • IEEE 1202/383
• 105°C • ICEA T-29-520

Insulation Thickness OD (Nom)
Part No. ANSI Type Pairs Color Code Jacket Color
Inch mm Inch mm
20 AWG Solid Conductors • Overall Beldfoil Shielding
®
PVC Insulation • PVC Jacket
3111A JX 1 White, Red Black
3112A KX 1 Yellow, Red Yellow .016 .41 .206 5.23
3113A TX 1 Blue, Red Blue

20 AWG Solid Conductors • Individually Beldfoil Shielded Pairs + Overall Beldfoil Shielding
PVC Insulation • PVC Jacket
3115A JX 2 White, Red Black .016 .41 .332 8.43
1006A JX 4 White, Red Black .016 .41 .383 9.73
1012A KX 4 Yellow, Red Yellow .016 .41 .383 9.73
1013A KX 8 Yellow, Red Yellow .016 .41 .503 12.78

16 AWG Solid Conductors • Overall Beldfoil Shielding
PVC Insulation • PVC Jacket
1101A EX 1 Purple, Red Purple
1000A JX 1 White, Red Black
.017 .43 .248 6.30
1018A KX 1 Yellow, Red Yellow
1023A TX 1 Blue, Red Blue

PVC = Polyvinyl Chloride
