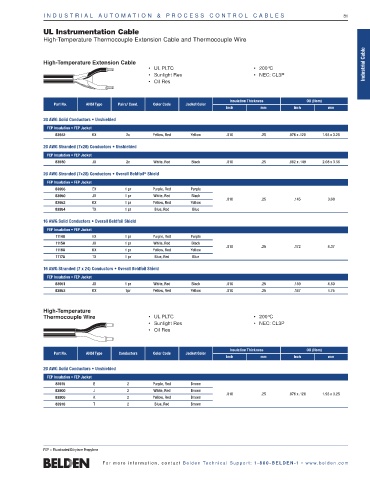

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 81

UL Instrumentation Cable
High-Temperature Thermocouple Extension Cable and Thermocouple Wire
Industrial Cable
High-Temperature Extension Cable
• UL PLTC • 200°C
• Sunlight Res • NEC: CL3P
• Oil Res

Insulation Thickness OD (Nom)
Part No. ANSI Type Pairs/ Cond. Color Code Jacket Color
Inch mm Inch mm
20 AWG Solid Conductors • Unshielded
FEP Insulation • FEP Jacket
83932 KX 2c Yellow, Red Yellow .010 .25 .076 x .128 1.93 x 3.25
20 AWG Stranded (7x28) Conductors • Unshielded
FEP Insulation • FEP Jacket
83930 JX 2c White, Red Black .010 .25 .082 x .149 2.08 x 3.56

®
20 AWG Stranded (7x28) Conductors • Overall Beldfoil Shield
FEP Insulation • FEP Jacket
83955 EX 1 pr Purple, Red Purple
83950 JX 1 pr White, Red Black
.010 .25 .145 3.68
83952 KX 1 pr Yellow, Red Yellow
83954 TX 1 pr Blue, Red Blue
16 AWG Solid Conductors • Overall Beldfoil Shield
FEP Insulation • FEP Jacket
1114A EX 1 pr Purple, Red Purple
1115A JX 1 pr White, Red Black
.010 .25 .172 4.37
1116A KX 1 pr Yellow, Red Yellow
1117A TX 1 pr Blue, Red Blue
16 AWG Stranded (7 x 24) Conductors • Overall Beldfoil Shield
FEP Insulation • FEP Jacket
83951 JX 1 pr White, Red Black .010 .25 .189 4.80
83953 KX 1pr Yellow, Red Yellow .010 .25 .187 4.75

High-Temperature
Thermocouple Wire • UL PLTC • 200°C
• Sunlight Res • NEC: CL3P
• Oil Res

Insulation Thickness OD (Nom)
Part No. ANSI Type Conductors Color Code Jacket Color
Inch mm Inch mm
20 AWG Solid Conductors • Unshielded
FEP Insulation • FEP Jacket
83915 E 2 Purple, Red Brown
83900 J 2 White, Red Brown
.010 .25 .076 x .128 1.93 x 3.25
83905 K 2 Yellow, Red Brown
83910 T 2 Blue, Red Brown

FEP = Fluorinated Ethylene Propylene

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
