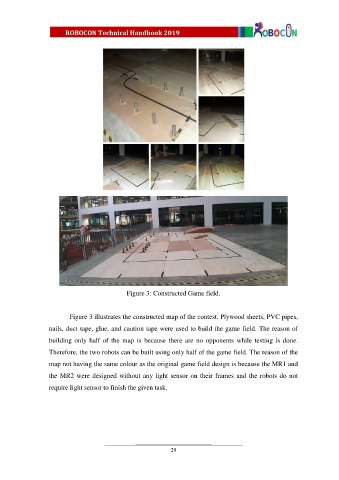

Figure 3: Constructed Game field.

Figure 3 illustrates the constructed map of the contest. Plywood sheets, PVC pipes,
nails, duct tape, glue, and caution tape were used to build the game field. The reason of

building only half of the map is because there are no opponents while testing is done.
Therefore, the two robots can be built using only half of the game field. The reason of the

map not having the same colour as the original game field design is because the MR1 and

the MR2 were designed without any light sensor on their frames and the robots do not
require light sensor to finish the given task.
