Page 36 - 2017 Product Guide

UNDERFLOOR HEATING | THERMOSCREED

Versatile in screed heating cable
Thermoscreed™ 18W/Lm is a brilliantly versatile,
robust 5.5mm floor heating cable designed for
use in screed.

1

2

3
4

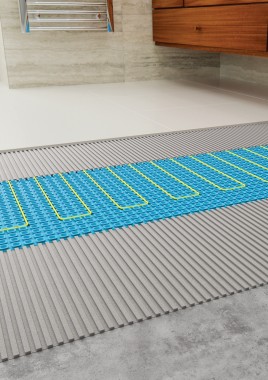

5.5mm in screed heating cable ideal for new build projects
5
Thermoscreed 18W/Lm - Cable Only
STOCK AREA SIZE OUTPUT RRP EXCL RRP INCL
NO M2 LM W $ $
3050 1 - 1.5 11.0 200 135.45 149.00
1 Laminate floor or engineered board 3051 1.5 - 2 16.5 300 162.73 179.00

2 Levelling compound or screed 3052 2 - 2.5 22.0 400 208.18 229.00
3 Thermoscreed system 3053 2.5 - 3.5 27.5 500 244.55 269.00
4 Econoboard Coated Insulation Board 3054 3.5 - 4 33.0 600 290.00 319.00
5 Concrete substrate 3055 4 - 5 39.0 700 329.09 362.00
3056 5 - 6 45.0 850 362.73 399.00
3057 6 - 7 55.0 1000 426.36 469.00
How much fixing profile? 3058 7 - 8 69.0 1250 526.36 579.00
If you are using our galvanised fixing profile you 3059 8 - 9 76.0 1375 617.27 679.00
will need to allow 1m of profile for every 6m of 3060 9 - 11 94.0 1700 717.27 789.00
cable. Total lm / 6 = m required (25m rolls).
3061 11 - 14 116.0 2100 762.73 839.00

3062 14 - 17 144.0 2600 1,044.55 1,149.00
3063 17 - 24 183.0 3300 1,453.64 1,599.00
What about cable spacing?
Use the simple equation to calculate spacing:
Available floor space (m ) x 100 = Spacing (cm)
2
Total cable length
Thermoscreed Cable Fixing Accessories Choose your thermostat on Pg. 42 - 48
STOCK DESCRIPTION UNIT RRP EXCL RRP INCL
NO $ $
109550 Vario PLY Grid 0.6 x 0.6 (8 pk) 2.88m² 90.00 99.00
44.00
40.00
1.2 x 5m roll
255
TY
TWENTY FIVE FIVNTY FIV 2 3261 In Screed Cable Mesh 50m x 80mm x 8mm roll 126.36 139.00
Edge Insulation Strip
3225
YEAR WARRANTYARRAR WA RRA 3259 Galvanised Fixing Profile 25m roll 90.00 99.00
WA
36 WWW.THERMOGROUP.COM.AU | TO ORDER CALL 1300 368 631 | SALES@THERMOGROUP.COM.AU
