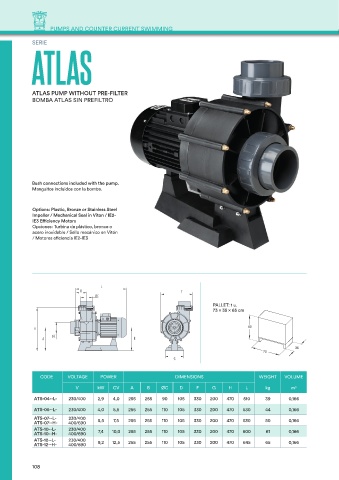

Page 108 - Catalogue IML-VP 2024

PUMPS AND COUNTER CURRENT SWIMMING
SERIE
ATLAS

ATLAS PUMP WITHOUT PRE-FILTER
BOMBA ATLAS SIN PREFILTRO

Bush connections included with the pump.
Manguitos incluidos con la bomba.

Options: Plastic, Bronze or Stainless Steel
Impeller / Mechanical Seal in Viton / IE2-

IE3 Efficiency Motors
Opciones: Turbina de plástico, bronce o
acero inoxidable / Sello mecánico en Vitón

/ Motores eficiencia IE2-IE3

L
D F
ØC
PALLET: 1 u.
73 × 35 × 65 cm

H 65
ØC
A B
35
73
G

CODE VOLTAGE POWER DIMENSIONS WEIGHT VOLUME
V kW CV A B ØC D F G H L kg m 3

ATS-04--L- 230/400 2,9 4,0 255 255 90 105 330 200 470 510 39 0,166
ATS-05--L- 230/400 4,0 5,5 255 255 110 105 330 200 470 530 44 0,166
ATS-07--L- 230/400 5,5 7,5 255 255 110 105 330 200 470 530 50 0,166
ATS-07--H- 400/690
ATS-10--L- 230/400 7,4 10,0 255 255 110 105 330 200 470 600 61 0,166
ATS-10--H- 400/690
ATS-12--L- 230/400
ATS-12--H- 400/690 9,2 12,5 255 255 110 105 330 200 470 645 65 0,166
