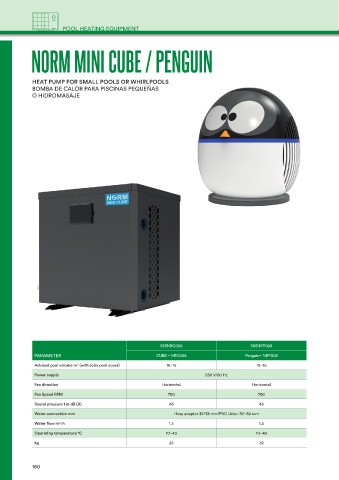

Page 160 - Catalogue IML-VP 2024
P. 160
POOL HEATING EQUIPMENT
NORM MINI CUBE / PENGUIN
HEAT PUMP FOR SMALL POOLS OR WHIRLPOOLS
BOMBA DE CALOR PARA PISCINAS PEQUEÑAS
O HIDROMASAJE
565NRC008 565NRP008
PARAMETER CUBE – NRC008 Penguin– NRP008
Advised pool volume m³ (with solar pool cover) 10–15 10–15
Power supply 230 V/50 Hz
Fan direction Horizontal Horizontal
Fan Speed RPM 700 700
Sound pressure 1 m dB (A) 46 46
Water connection mm Hose adaptor 32/38 mm/PVC Union 32–50 mm
Water flow m³/h 1,5 1,5
Operating temperature °C 10–43 10–43
kg 23 32
160
