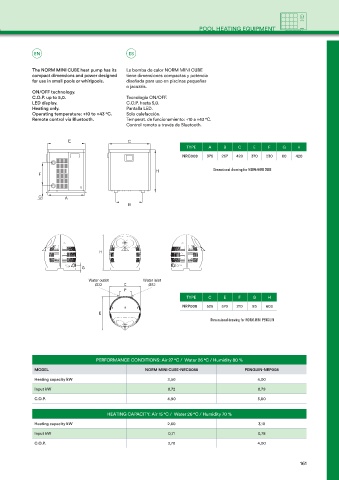

Page 161 - Catalogue IML-VP 2024

POOL HEATING EQUIPMENT

EN ES

The NORM MINI CUBE heat pump has its La bomba de calor NORM MINI CUBE
compact dimensions and power designed tiene dimensiones compactas y potencia
for use in small pools or whirlpools. diseñada para uso en piscinas pequeñas
o jacuzzis.
ON/OFF technology.
C.O.P. up to 5,0. Tecnología ON/OFF.
LED display. C.O.P. hasta 5,0.
Heating only. Pantalla LED.
Operating temperature: +10 to +43 °C. Solo calefacción.
Remote control via Bluetooth. Temperat. de funcionamiento: +10 a +43 °C.
Control remoto a través de Bluetooth.

E C
TYPE A B C E F G H
NRC008 375 267 420 370 230 80 420

H Dimensional drawing for NORM MINI CUBE
F

G A
B

H

G

Water outlet Water inlet
Ø32 C Ø32
F
TYPE C E F G H
NRP008 525 570 210 83 603
E
Dimensional drawing for NORM MINI PENGUIN

PERFORMANCE CONDITIONS: Air 27 °C / Water 26 °C / Humidity 80 %
MODEL NORM MINI CUBE-NRC0088 PENGUIN-NRP008

Heating capacity kW 3,50 4,00
Input kW 0,72 0,79
C.O.P. 4,90 5,00

HEATING CAPACITY: Air 15 °C / Water 26 °C / Humidity 70 %
Heating capacity kW 2,60 3,10
Input kW 0,71 0,78
C.O.P. 3,70 4,00
