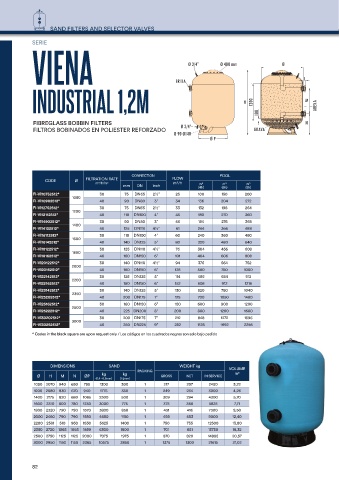

Page 82 - Catalogue IML-VP 2024

SAND FILTERS AND SELECTOR VALVES
SERIE
VIENA

INDUSTRIAL 1,2M

FIBREGLASS BOBBIN FILTERS
FILTROS BOBINADOS EN POLIESTER REFORZADO

CONNECTION POOL
CODE Ø FILTRATION RATE FLOW
m3/h/m2 m3/h m3 m3 m3
mm DN inch (4h) (6h) (8h)
FI-VI10752512* 30 75 DN65 2½" 25 100 150 200
1050
FI-VI10902512* 40 90 DN80 3" 34 136 204 272
FI-VI12752512* 30 75 DN65 2½" 33 132 198 264
1200
FI-VI12112512* 40 110 DN100 4" 45 180 270 360
FI-VI14902512* 30 90 DN80 3" 46 184 276 368
1400
FI-VI14122512* 40 125 DN110 4½" 61 244 366 488
FI-VI16112512* 30 110 DN100 4" 60 240 360 480
1600
FI-VI16142512* 40 140 DN125 5" 80 320 480 640
FI-VI18122512* 30 125 DN110 4½" 76 304 456 608
1800
FI-VI18162512* 40 160 DN150 6" 101 404 606 808
FI-VI20122512* 30 140 DN110 4½" 94 376 564 752
2000
FI-VI20162512* 40 160 DN150 6" 125 500 750 1000
FI-VI22142512* 30 125 DN125 5" 114 456 684 912
2200
FI-VI22162512* 40 160 DN150 6" 152 608 912 1216
FI-VI23142512* 30 140 DN125 5" 130 520 780 1040
2350
FI-VI23202512* 40 200 DN175 7" 175 700 1050 1400
FI-VI25162512* 30 160 DN150 6" 150 600 900 1200
2500
FI-VI25222512* 40 225 DN200 8" 200 800 1200 1600
FI-VI30202512* 30 200 DN175 7" 212 848 1272 1696
3000
FI-VI30252512* 40 250 DN225 9" 282 1128 1692 2256
* Codes in the black square are upon request only /Los códigos en los cuadrados negros son solo bajo pedido

DIMENSIONS SAND WEIGHT kg
PACKING VOLUME
kg kg m3
Ø H M N ØP GROSS NET IN SERVICE
(0,4 - 0,8mm) (1-2mm)
1050 2070 940 650 755 1300 300 1 217 207 2450 3,22
1200 2080 830 670 940 1775 350 1 249 234 3000 4,26
1400 2175 820 680 1085 2300 500 1 309 294 4300 5,70
1600 2310 800 780 1230 3000 775 1 375 360 5825 7,71
1800 2320 790 790 1370 3800 850 1 431 416 7300 9,50
2000 2460 790 790 1550 4650 1150 1 498 483 9000 12,40
2200 2581 510 950 1830 5625 1400 1 750 735 12500 13,80
2350 2720 1065 1065 1859 6300 1800 1 701 651 13750 18,32
2500 2750 1125 1125 2000 7075 1975 1 870 820 14885 20,57
3000 2950 1150 1150 2365 10575 3850 1 1375 1300 21615 31,02
