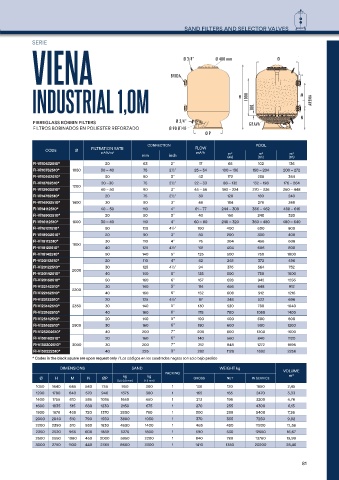

Page 81 - Catalogue IML-VP 2024

PUMPS AND COUNTER CURRENT SWIMMING
SAND FILTERS AND SELECTOR VALVES
SERIE
VIENA

INDUSTRIAL 1,0M

FIBREGLASS BOBBIN FILTERS
FILTROS BOBINADOS EN POLIESTER REFORZADO

CONNECTION POOL
CODE Ø FILTRATION RATE FLOW
m3/h/m2 m3/h m3 m3 m3
mm inch (4h) (6h) (8h)
FI-VI10632510* 20 63 2" 17 68 102 136
FI-VI10752510* 1050 30 – 40 75 2½" 25 – 34 100 – 136 150 – 204 200 – 272
FI-VI10902510* 50 90 3" 43 172 258 344
FI-VI12752510* 20 –30 75 2½" 22 – 33 88 – 132 132 – 198 176 – 264
1200
FI-VI12902510* 40 – 50 90 3" 45 – 56 180 – 224 270 – 336 360 – 448
FI-VI14752510* 20 75 2½" 30 120 180 240
FI-VI14902510* 1400 30 90 3" 46 184 276 368
FI-VI14112510* 40 – 50 110 4" 61 – 77 244 – 308 366 – 462 488 – 616
FI-VI16902510* 20 90 3" 40 160 240 320
FI-VI16112510* 1600 30 – 40 110 4" 60 – 80 240 – 320 360 – 480 480 – 640
FI-VI16122510* 50 125 4½" 100 400 600 800
FI-VI18902510* 20 90 3" 50 200 300 400
FI-VI18112510* 30 110 4" 76 304 456 608
1800
FI-VI18122510* 40 125 4½" 101 404 606 808
FI-VI18142510* 50 140 5" 125 500 750 1000
FI-VI20112510* 20 110 4" 62 248 372 496
FI-VI20122510* 2000 30 125 4½" 94 376 564 752
FI-VI20142510* 40 140 5" 125 500 750 1000
FI-VI20162510* 50 160 6" 157 628 942 1256
FI-VI22142510* 2200 30 140 5" 114 456 648 912
FI-VI22162510* 40 160 6" 152 608 912 1216
FI-VI23122510* 20 125 4½" 87 348 522 696
FI-VI23142510* 2350 30 140 5" 130 520 780 1040
FI-VI23162510* 40 160 6" 175 700 1050 1400
FI-VI25142510* 20 140 5" 100 400 600 800
FI-VI25162510* 2500 30 160 6" 150 600 900 1200
FI-VI25202510* 40 200 7" 200 800 1200 1600
FI-VI30162510* 20 160 6" 140 560 840 1120
FI-VI30202510* 3000 30 200 7" 212 848 1272 1696
FI-VI30222510* 40 225 8" 282 1128 1692 2256
* Codes in the black square are upon request only /Los códigos en los cuadrados negros son solo bajo pedido
DIMENSIONS SAND WEIGHT kg
PACKING VOLUME
kg kg m3
Ø H M N ØP GROSS NET IN SERVICE
(0,4-0,8 mm) (1-2 mm)
1050 1640 645 540 755 950 300 1 130 120 1850 2,45
1200 1780 640 570 940 1375 300 1 165 155 2470 3,33
1400 1755 610 585 1085 1650 450 1 213 198 3200 4,76
1600 1835 515 680 1230 2150 675 1 270 255 4300 6,13
1800 1876 465 720 1370 2800 750 1 300 285 5400 7,26
2000 2040 510 790 1550 3800 1050 1 370 355 7250 9,92
2200 2390 510 950 1830 4650 1400 1 465 450 11200 12,58
2350 2520 965 600 1859 5275 1800 1 590 530 12550 16,67
2500 2550 1080 450 2000 5950 2200 1 840 780 13760 19,99
3000 2750 1100 440 2365 8600 3300 1 1410 1350 20200 28,40
