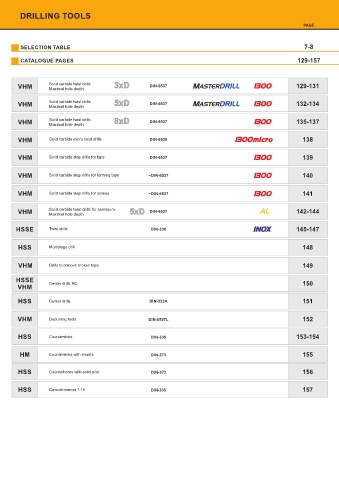

WK DRILLING TOOLS
PAGE
SELECTION TABLE 7-8
CATALOGUE PAGES 129-157
VHM Solid carbide twist drills 3xD DIN-6537 MASTERDRILL 1300 129-131
Maximal hole depth
Solid carbide twist drills
VHM Maximal hole depth 5xD DIN-6537 MASTERDRILL 1300 132-134
Solid carbide twist drills
VHM Maximal hole depth 8xD DIN-6537 1300 135-137
VHM Solid carbide micro twist drills DIN-6539 1300micro 138
VHM Solid carbide step drills for taps DIN-6537 P P M M K K 1300 139
Material groups
N N S S H H
VHM Internal cooling ~DIN-6537 IK 1300 140
Solid carbide step drills for forming taps
Quality of material
Coating
VHM Solid carbide step drills for screws ~DIN-6537 1300 141
Nakrój / Chamfer
VHM
Solid carbide twist drills for aluminum
VHM Maximal hole depth 5xD DIN-6537 AL 142-144
HSSE Twist drills DIN-338 INOX 145-147
6
HSS Multistage drill 148
VHM Drills to remove broken taps 149
HSSE
Center drills NC 150
VHM
HSS Center drills DIN-333A 151
7
VHM Deburring tools DIN-6537L 152
HSS Countersinks DIN-335 153-154
HM Countersinks with inserts DIN-373 155
HSS Counterbores with solid pilot DIN-373 156
HSS Conical reamer 1:16 DIN-335 157
Example of order Available from stock
On request
